Deck 3: Visual Displays of Data Exam

Question 1

The table shows the price of a volatile stock from the months January 1999 through December 1999 as determined by the closing price on the last trading day of the month. The price is rounded to the nearest dollar.

$$\begin{array} { l l l l l l l l l l l l } \text { Jan } & \text { Feb } & \text { Mar } & \text { Apr } & \text { May } & \text { Jun } & \text { Jul } & \text { Aug } & \text { Sep } & \text { Oct } & \text { Nov } & \text { Dec } \\\hline 32 & 70 & 73 & 111 & 184 & 87 & 45 & 42 & 67 & 87 & 94 & 111\end{array}$$
Which time series line chart represents the data?

A)


B)


C)



D) None of the above

Answer 1

Question 2

The data below represent the results of a poll in which the following question was asked:, "To what degree are you satisfied with the outcome of the 2012 gubernatorial election?" Which pie chart below represents the given data set?
$\begin{array}{ll}\text { Very } & 36 \\ \text { Somewhat } & 48 \\ \text { Not at All } & 62 \\ \text { No opinion } & 54\end{array}$

A)



B)

Answer 2

A

Question 3

using the graphical display below.




-Identify the class that has the greatest increase in 2.5 or better GPA's over the five decades.

A) Sr
B) Jr
C) So
D) Fr

Answer 3

Fr

Question 4

The following dot plot represents the ages of the people in a sample selected from a group of campaign volunteers.


How many people were in the sample?

A) 15
B) 21
C) 27
D) 28

Question 5

The frequency table shows the lengths in inches of 40 fireplace logs.
$$\begin{array} { r | r } \text { Length (in) } & \text { Number of Logs } \\\hline 14.5 - 14.9 & 2 \\15.0 - 15.4 & 5 \\15.5 - 15.9 & 12 \\16.0 - 16.4 & 11 \\16.5 - 16.9 & 7 \\17.0 - 17.4 & 3\end{array}$$ Construct a cumulative frequency table for the data.

Question 6

After reviewing a movie, 400 people rated the movie as excellent, good, or fair. The following data give the rating distribution. Which pie chart below represents the given data set?

$\begin{array}{ccc}\text { Excellent } & \text { Good } & \text { Fair } \\ 120 & 180 & 100\end{array}$

A)


B)

Question 7

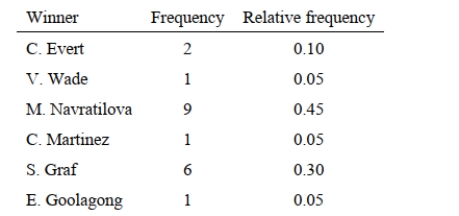

The table lists the winners of the Wimbledon women's singles title for the years 1976-1995.
Construct a bar chart for the given relative frequencies.

Question 8

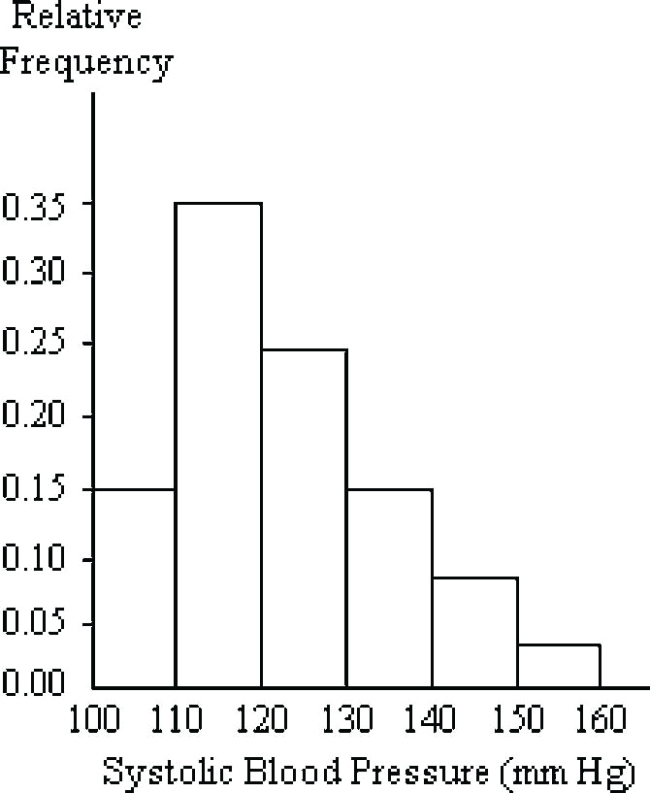

A nurse measured the blood pressure of each person who visited her clinic. Following is a relative-frequency histogram for the systolic blood pressure readings for those people aged between 25 and 40. Use the histogram to answer the question. The blood pressure readings Were rounded to the next higher whole number.



Given that 800 people were aged between 25 and 40, approximately how many had a systolic Blood pressure reading greater than 120 and less than or equal to 140?

A) 0.40
B) 32
C) 320
D) 400

Question 9

Find the original data from the stem-and-leaf plot. $$\begin{array} { r | c } \text { Stem } & \text { Leaves } \\\hline 9 & 59 \\10 & 19 \\11 & 55\end{array}$$

A) 95, 91, 99, 101, 111, 115
B) 91, 95, 91, 109, 119, 115
C) 95, 99, 101, 101, 115, 115
D) 95, 99, 101, 109, 115, 115

Question 10

On Monday mornings, a bookie tabulates the point spreads for the basketball games played on saturday and Sunday. He found that 5 games had a spread of 1 or 2 points, 4 had a spread of 3 to 6 points, 4 had a spread of 7 to 10, and 3 were more than 10. Construct the relative frequency table the bookie obtained for the weekend basketball games.

Question 11

Wagenlucht Ice Cream Company is always trying to create new flavors of ice cream. They are market testing three kinds to find out which one has the best chance by of becoming popular.
They give small samples of each to 50 people at a grocery store. 15 ice cream tasters preferred the Strawberry Cream, 30 preferred Choco-Nuts, and 5 loved the Orange Mint. Construct a pareto chart to represent these preferences. Choose the vertical scale so that the relative frequencies are represented.

Question 12

The data below are the numbers of hours of homework done as reported by 24 high school juniors for the last week in September, 2006.
6, 5, 6, 4, 6, 6, 9, 7, 6, 3, 8, 5, 5, 8, 6, 5, 8, 6, 5, 7, 5, 8, 7, 4
Using bins of 2 hours width, which relative frequency histogram represents the data?

A)


B)


C)


D) None of the above

Question 13

using the graphical disply below.



-Identify the utility that decreases as a percentage of the total utility bill from January to June.

A) Electric
B) Natural Gas
C) Water
D) None decrease from January to June.

Question 14

Which line chart below represents the data? $$\begin{array}{l}\hline \text { Weight of Cats }\\\begin{array} { l | c } \hline \text { Weight (lb) } & \text { Number of Cats } \\\hline 5 - 7 & 2 \\8 - 10 & 9 \\11 - 13 & 18 \\14 - 16 & 13 \\17 - 19 & 4 \\20 - 22 & 1 \\\hline\end{array}\end{array}$$

A)


B)


C)


D) None of the above

Question 15

A medical research team studied the ages of patients who had strokes caused by stress. The results of 34 patients are tabulated below. $$\begin{array} { l | c } \text { Age } & \text { Frequency } \\\hline 25 - 29 & 3 \\30 - 34 & 3 \\35 - 39 & 6 \\40 - 44 & 4 \\45 - 49 & 5 \\50 - 54 & 4 \\55 - 59 & 5 \\60 - 64 & 5\end{array}$$ Construct the frequency histogram.

Question 16

A machine is supposed to fill juice bottles with 16 fluid ounces of juice. The manufacturer picks a sample of bottles that have been filled by the machine and determines the volume of juice in each bottle. The results are shown in the following stem-and-leaf diagram. The leaf unit is 0.1. $$\begin{array} { l | l } 15 & 1 \\15 & 233 \\15 & \\15 & 667777 \\15 & 888899999 \\16 & 000000011111 \\16 & 222223333 \\16 & 445 \\16 & 66 \\16 & 8\end{array}$$ How many bottles were sampled?

A) 9
B) 10
C) 15
D) 44

Question 17

The following dot plot represents the ages of the customers who visited a sporting goods store on a particular Monday.

How many people in the sample were aged between 20 and 28, inclusive?

Question 18

The Kappa Iota Sigma Fraternity polled its members on the weekend party theme. The vote was as follows: six for toga, four for hayride, eight for casino, and two for masquerade. Display the vote count in a Pareto chart.

Question 19

Construct a bar chart for the relative frequencies given.

Question 20

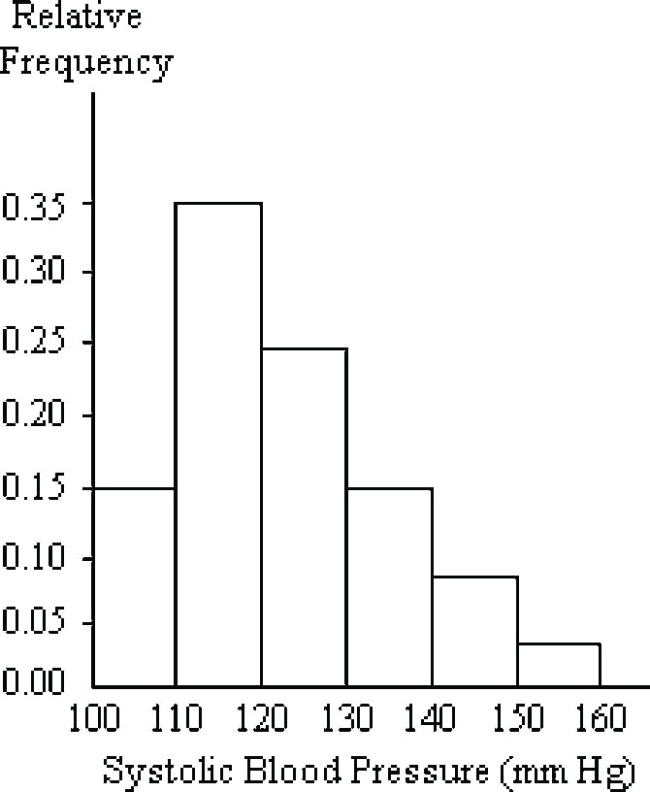

A nurse measured the blood pressure of each person who visited her clinic. Following is a relative-frequency histogram for the systolic blood pressure readings for those people aged between 25 and 40. Use the histogram to answer the question. The blood pressure readings were rounded up to the next whole number.

Approximately what percentage of the people aged 25-40 had a systolic blood pressure reading greater than or equal to 130?

A) 15%
B) 28%
C) 75%
D) 90%

Question 21

The stem-and-leaf diagram below shows the highest wind velocity ever recorded in 30 different U.S. cities. The velocities are given in miles per hour. The leaf unit is 1.0.
$$\begin{array} { l | l } 6 & 4 \\7 & 23 \\7 & 589 \\8 & 0111344 \\8 & 5568899 \\9 & 0012234 \\9 & 559\end{array}$$ How many of the maximum wind velocities are 88 miles per hour or lower?

A) 2
B) 5
C) 11
D) 18

Question 22

A machine is supposed to fill juice bottles with 16 fluid ounces of juice. The manufacturer picks a sample of bottles that have been filled by the machine and determines the volume of juice in each bottle. The results are shown in the stem-and-leaf diagram below. The leaf unit is 0.1.
$$\begin{array} { l | l } 15 & 1 \\15 & \\15 & 445 \\15 & 667777 \\15 & 888899999 \\16 & 000000011111 \\16 & 222233333 \\16 & 445 \\16 & 66 \\16 & 8\end{array}$$ How many bottles had exactly 16 fluid ounces (to the nearest 0.1 ounce)?

A) 0
B) 6
C) 11
D) 25

Question 23

Using the graphical display below.



-Identify the class that had the lowest percentage increase in 2.5 or better GPA's between the fourth and fifth decades.

A) Sr
B) Jr
C) So
D) Fr

Question 24

Which line chart below represents the data in the table?
$$\begin{array}{l}\hline \text { Student Quiz Scores }\\\begin{array} { l | c } \hline \text { Quiz Scores } & \text { Frequency } \\\hline 10 - 14 & 2 \\15 - 19 & 5 \\20 - 24 & 13 \\25 - 29 & 17 \\30 - 34 & 6 \\\hline\end{array}\end{array}$$

A)


B)


C)


D) None of the above

Question 25

The data below represent the results of a poll in which the following question was asked: "To what degree are you satisfied with your current health insurance?" Which pie chart below
Represents the given data set?

$\begin{array}{ll}\text { Very } & 14.5 \% \\ \text { Somewhat } & 26.3 \% \\ \text { Not at All } & 36.8 \% \\ \text { No opinion } & 22.4 \%\end{array}$

A)



B)

Question 26

The time series line chart below shows the prices of a volatile stock from January 1999 to December 1999. Between which two consecutive months did the price of the stock drop by The greatest percentage?

A) June - July
B) August - September
C) May - June
D) None of the above

Question 27

The table shows the end-of-the-month checking account balance of a statistics teacher for the months January 1999 through December 1999 as determined by the closing balance on the last banking day of the month. The balance is rounded to the nearest dollar.
$$\begin{array} { l l l l l l l l l l l l } \text { Jan } & \text { Feb } & \text { Mar } & \text { Apr } & \text { May } & \text { Jun } & \text { Jul } & \text { Aug } & \text { Sep } & \text { Oct } & \text { Nov } & \text { Dec } \\\hline 1112 & 1356 & 1627 & 1936 & 1743 & 1481 & 1490 & 1340 & 1139 & 910 & 700 & 500\end{array}$$ Which time series line chart represents the data?

A)



B)


C)

D) None of the above

Question 28

Over the past 4 years of football games the Thunder gained the number of yards rushing as shown in the following table. $$\begin{array} { | l | c | } \hline \text { Yards } & \text { Frequency } \\\hline 50 - 99 & 2 \\\hline 100 - 149 & 7 \\\hline 150 - 199 & 24 \\\hline 200 - 249 & 6 \\\hline 250 - 300 & 1 \\\hline\end{array}$$ Construct a relative frequency table for these data.

Question 29

Using the graphical display below.




-Identify the utility that has its smallest percentage of the total bill in March.

A) Gas
B) Electric
C) Water
D) None of the utilities has its smallest percentage of the total bill in March.

Question 30

A car dealer is deciding what kinds of vehicles he should order from the factory. He looks at his sales report for the preceding period. Choose the vertical scale so that the relative frequencies are represented.

$$\begin{array} { r | r } \text { Vehicle } & \text { Sales } \\\hline \text { Economy } & 16 \\\text { Sports } & 4 \\\text { Family } & 28 \\\text { Luxury } & 8 \\\text { Truck } & 24\end{array}$$ Construct a Pareto chart to help him decide.

Question 31

States with high deer populations have a large number of car-deer collisions. A survey of 30 drivers aged 40-49 in Wisconsin asked each driver how many such collisions they had had since obtaining a driver's license. The data were $$\begin{array} { l l l l l l l l l l } 4 & 0 & 3 & 6 & 3 & 2 & 4 & 1 & 1 & 2 \\8 & 2 & 1 & 3 & 5 & 1 & 1 & 2 & 1 & 5 \\0 & 0 & 9 & 2 & 6 & 5 & 3 & 2 & 4 & 4\end{array}$$
Obtain a frequency table for these data using one value for each class.

Question 32

The frequency table shows the weights in ounces of 30 stones. $$\begin{array} { c | c } \text { Weight (oz) } & \text { Number of Stones } \\\hline 1.2 - 1.6 & 3 \\1.7 - 2.1 & 2 \\2.2 - 2.6 & 5 \\2.7 - 3.1 & 6 \\3.2 - 3.6 & 14\end{array}$$ Construct the relative frequency table from the given frequency table.

Question 33

The data below is the number of hours of homework done as reported by 24 high school juniors for the last week in September, 2006.
6, 5, 6, 4, 6, 6, 9, 7, 6, 3, 8, 5, 5, 8, 6, 5, 8, 6, 5, 7, 5, 8, 7, 4
Using bins of 2 hours width beginning at 3, construct the cumulative frequency histogram.

Question 34

The bar chart shows the relative frequencies of winners of the Wimbledon women's singles tennis title for 1976 - 1995.

How many titles did Graf and Navratilova win?

A)0.75
B)14
C)15
D)40

Question 35

Using the graphical display below.



-Identify the class that has had the greatest percentage increase with respect to its initial percentage over the five decades.

A) Fr
B) So
C) Jr
D) Sr

Question 36

Find the original data from the stem-and-leaf plot. $$\begin{array} { c | c } \text { Stem } & \text { Leaves } \\\hline 7.1 & 18 \\7.2 & 88 \\7.3 & 188\end{array}$$

A) 7.11, 7.18, 7.28, 7.28, 7.31, 7.38, 7.38
B) 0.81, 1.51, 1.52, 1.52, 0.83, 1.53, 1.53
C) 0.81, 0.81, 1.52, 1.52, 1.52, 0.83, 1.53, 1.54
D) 711, 712, 728, 728, 731, 738, 738

Question 37

A nurse measured the blood pressure of each person who visited her clinic. Following is a relative-frequency histogram for the systolic blood pressure readings for those people aged between 25 and 40. Use the histogram to answer the question. The blood pressure readings were rounded down to the next whole number.


Given that 600 people were aged between 25 and 40, approximately how many had a systolic blood pressure reading recorded as between 120 and 149 inclusive?

A) 48%
B) 250
C) 288
D) 300

Question 38

Using the graphical display below.


-Identify the utility that accounts for over half the total bill in two months.

A) Water
B) Electric
C) Gas
D) No single utility accounts for more than half the total bill in two months.

Question 39

Find the original data from the stem-and-leaf plot. $$\begin{array} { r | l } \text { Stem } & \text { Leaves } \\\hline 1 & 18 \\2 & 1137 \\3 & 13389 \\4 & 34\end{array}$$

A) 11, 18, 23, 23, 27, 33, 34, 38, 39, 43, 44
B) 2, 9, 2, 2, 4, 8, 4, 4, 6, 11, 12, 7, 8, 12
C) 13, 13, 14, 21, 21, 23, 27, 31, 31, 43, 44
D) 11, 18, 21, 21, 23, 27, 31, 33, 33, 38, 39, 43, 44

Question 40

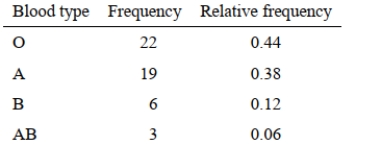

Construct a frequency table for the numbers of persons with various blood types.

Question 41

2|9
3| 12
3| 67788
4| 0233
4| 5567
5| 124
5|
6| 0

-How many values are there less than 40?

Question 42

The stacked bar chart below shows the percentages of death due to cancer in four geographic regions of the U.S. that occurred in three ethnic groups in 2003. In which geographic area did Hispanics account for their highest percentage of cancer deaths
in 2003?

Question 43

The 47 businesses on four blocks of Water Street were classified according to the amount of sales taxes they collected in one month.
$$\begin{array} { | l | c | } \hline \text { Taxes } ( \$ ) & \text { Frequency } \\\hline 0 - 1999 & 7 \\\hline 2000 - 3999 & 11 \\\hline 4000 - 5999 & 14 \\\hline 6000 - 7999 & 8 \\\hline 8000 - 9999 & 5 \\\hline 10000 - 11999 & 2 \\\hline\end{array}$$ Construct a frequency histogram for these data.

Question 44

The stem and leaf plot below shows the weights in pounds of halibut caught on an Alaskan fishing boat for one day.
2|9
3| 12
3| 67788
4| 0233
4| 5567
5| 124
5|
6| 0
List all of the original weights.

Question 45

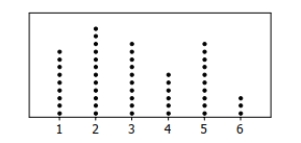

Alan tossed a die 50 times and obtained the results shown in the dot plot below. How many times did he roll an even number?

Question 46

Construct a Pareto chart for the NCAA wrestling data in Problem 4.

Question 47

The histogram below shows the ages of the actors who won the academy award for best actor from 1970 to 2006.


How many of the award winners were 50 years old or older at the time they won their Oscar?

Question 48

The following multiple line graph shows the numbers of death due to cancer in four geographic regions of the U.S. that occurred in three ethnic groups in 2003.
In which geographic area was the number of cancer deaths among whites the highest in 2003?

Question 49

- construct a line plot, starting at 1000.
