Deck 5: A Closer Look at Instruction Set Architectures

Question 1

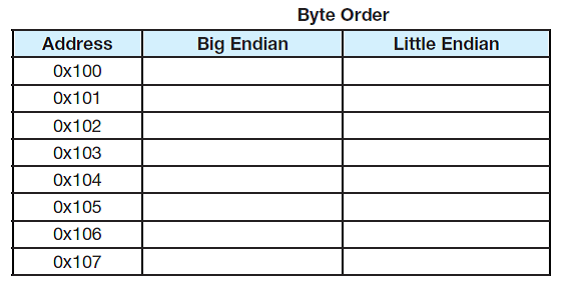

Show how the following values would be stored by byte-addressable machines with 32-bit words, using little endian and then big endian format. Assume that each value starts at address
Draw a diagram of memory for each, placing the appropriate values in the correct (and labeled) memory locations.
a) 0x456789A1
b) 0x0000058A
c) 0x14148888

Answer 1

The term endian refers to a computer architecture's "byte order", or the way the computer stores the bytes of a multiple-byte data element.
• Big endian machines store information with the most significant byte first.
• Little endian machines store information with the least significant byte first.
a) 0x456789A1
BYTE ORDER
Using big endian notation, the number 0x456789A1 is read from the higher order byte. The value 45 is read first and then followed by 67, and then 89 and later A1.
Using little endian notation, the number 0x456789A1 is read from the lower order byte. The value A1 is read first and then 89, next 67 and later 45.
b) 0x0000058A
BYTE ORDER
Using big endian notation, the number 0x0000058A is read from the higher order byte. The value 00 is read first and then followed by 00, and then 05 and later 8A.
Using little endian notation, the number 0x0000058A is read from the lower order byte. The value 8A is read first and then 05, next 00 and later 00.
c) 0x14148888
BYTE ORDER
Using big endian notation, the number 0x14148888 is read from the higher order byte. The value 14 is read first and then followed by 14, and then 88 and later 88.
Using little endian notation, the number 0x14148888 is read from the lower order byte. The value 88 is read first and then 88, next 14 and later 14.

Question 2

What are the pros and cons of fixed-length and variable-length instructions Which is currently more popular

Answer 2

Fixed and Variable length Instructions
The computer architecture is normally described by the maximum number of operands or addresses an instruction is able to accommodate. The length of the instruction thus limited by this. In MARIE, the instructions have a fixed length with opcodes taking up 4-bits and the operands each occupying 12-bits.
The advantage of fixed length instructions is that they perform better during instruction pipelining. The down side though is that they are not storage efficient.
In contrast, it demands more effort to decode a variable length instructions but easier to store.

Question 3

Data dependencies occur in a pipeline when multiple instructions need the CPU.

Answer 3

There are several conflicts which lead to 'pipeline conflicts' which deviates the goal of executing one instruction per clock cycle. They are:
• Resource Conflicts
• Data dependencies
• Conditional branch statements
Data dependencies occur in a situation where the operand obtained by performing some operation or by executing an instruction is to be used as the operand to another instruction to perform execution.
In this case, there is a conflict among data to be used by the instructions. There are several ways to handle these conflicts. One method is by providing additional hardware to identify whether the former instruction is executed and the result is obtained or not.
Therefore, the statement in question is False.

Question 4

What are the pipeline conflicts that can cause a slowdown in the pipeline

Question 5

Several design decisions exist with regard to instruction sets. Name four and explain.

Question 6

Fixed-length instruction format typically results in better performance than variablelength instruction format.

Question 7

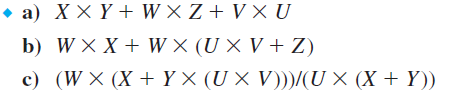

Convert the following expressions from reverse Polish notation to infix notation.

Question 8

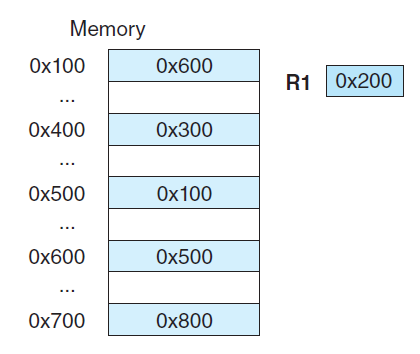

Suppose we have the instruction Load 1000. Given that memory and register R1 contain the values below:

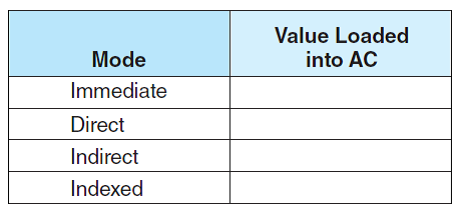

and assuming that R1 is implied in the indexed addressing mode, determine the actual value loaded into the accumulator and fill in the table below:

Question 9

The advantage of zero-address instruction computers is that they have short programs; the disadvantage is that the instructions require many bits, making them very long.

Question 10

The Population Studies Institute monitors the population of the United States. In 2008, this institute wrote a program to create files of the numbers representing populations of the various states, as well as the total population of the United States. This program, which runs on a Motorola processor, projects the population based on various rules, such as the average numbers of births and deaths per year. The institute runs the program and then ships the output files to state agencies so the data values can be used as input into various applications. However, one Pennsylvania agency, running all Intel machines, encountered difficulties, as indicated by the following problem. When the 32-bit unsigned integer
(representing the overall U.S. population prediction for 2013) is used as input, and the agency's program simply outputs this input value, the U.S. population forecast for 2014 is far too large. Can you help this Pennsylvania agency by explaining what might be going wrong (Hint: They are run on different processors.)

Question 11

Explain what it means for an instruction set to be orthogonal.

Question 12

What are the two types of ILP, and how do they differ

Question 13

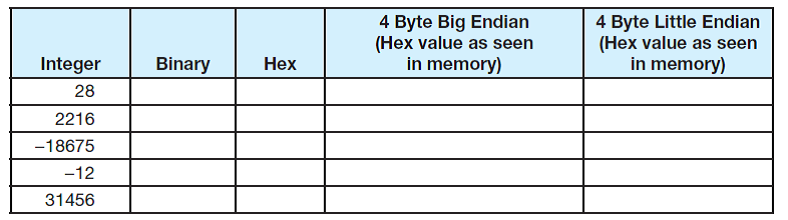

Fill in the following table to show how the given integers are represented, assuming that 16 bits are used to store values and the machine uses two's complement notation.

Question 14

How does an architecture based on zero operands ever get any data values from memory

Question 15

Convert the following expressions from reverse Polish notation to infix notation.

Question 16

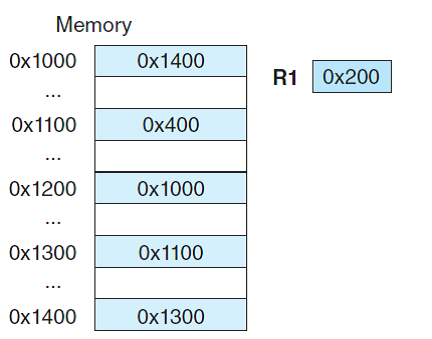

Suppose we have the instruction Load 500. Given that memory and register R1 contain the values below:

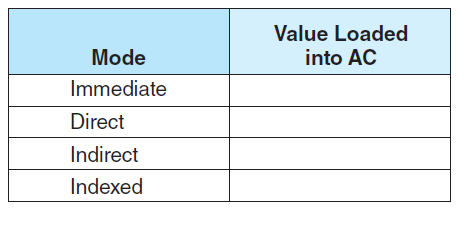

and assuming that R1 is implied in the indexed addressing mode, determine the actual value loaded into the accumulator and fill in the table below:

Question 17

What is an expanding opcode

Question 18

Expanding opcodes make instruction decoding much easier than when it is not used.

Question 19

What is an address mode

Question 20

Explain superscalar, superpipelining, and VLIW architectures.

Question 21

An instruction takes less time to execute on a processor using an instruction pipeline than on a processor without an instruction pipeline.

Question 22

There are reasons for machine designers to want all instructions to be the same length. Why is this not a good idea on a stack machine

Question 23

Explain how a stack is used to evaluate the RPN expressions from exercise 13.
Reference of Exercise 13:
Convert the following expressions from reverse Polish notation to infix notation.

Question 24

A nonpipelined system takes 200ns to process a task. The same task can be processed in a five-segment pipeline with a clock cycle of 40ns. Determine the speedup ratio of the pipeline for 200 tasks. What is the maximum speedup that could be achieved with the pipeline unit over the nonpipelined unit

Question 25

Assume a computer that has 32-bit integers. Show how each of the following values would be stored sequentially in memory, starting at address 0x100, assuming that each address holds 1 byte. Be sure to extend each value to the appropriate number of bits. You will need to add more rows (addresses) to store all given values.

a) 0xAB123456
b) 0x2BF876
c) 0x8B0A1
d) 0x1
e) 0xFEDC1234

Question 26

Which is likely to be longer (have more instructions): a program written for a zero address architecture, a program written for a one-address architecture, or a program written for a two-address architecture Why

Question 27

Give examples of immediate, direct, register, indirect, register indirect, and indexed addressing.

Question 28

List several ways in which the Intel and MIPS ISAs differ. Name several ways in which they are the same.

Question 29

If a byte-addressable machine with 32-bit words stores the hex value 98765432, indicate how this value would be stored on a little endian machine and on a big endian machine. Why does "endian-ness" matter

Question 30

Instruction set orthogonality refers to the characteristic in an instruction set architecture where each instruction has a "backup" instruction that performs the same operation.

Question 31

a) Write the following expression in postfix (reverse Polish) notation. Remember the rules of precedence for arithmetic operators!

b) Write a program to evaluate the above arithmetic statement using a stack-organized computer with zero-address instructions (so only Pop and Push can access memory).

Question 32

A nonpipelined system takes 100ns to process a task. The same task can be processed in a five-stage pipeline with a clock cycle of 20ns. Determine the speedup ratio of the pipeline for 100 tasks. What is the theoretical speedup that could be achieved with the pipeline system over a nonpipelined system

Question 33

The term "endian" refers to an architecture's byte ordering.

Question 34

A computer has 32-bit instructions and 12-bit addresses. Suppose there are 250 two address instructions. How many one-address instructions can be formulated Explain your answer.

Question 35

How does indexed addressing differ from based addressing

Question 36

Explain Java bytecodes.

Question 37

Consider a 32-bit hexadecimal number stored in memory as follows:

a) If the machine is big endian and uses two's complement representation for integers, write the 32-bit integer number stored at address 100 (you may write the number in hex).
b) If the machine is big endian and the number is an IEEE single-precision floating point value, is the number positive or negative
c) If the machine is big endian and the number is an IEEE single-precision floating-point value, determine the decimal equivalent of the number stored at address 100 (you may leave your answer in scientific notation form, as a number times a power of two).
d) If the machine is little endian and uses two's complement representation for integers, write the 32-bit integer number stored at address 100 (you may write the number in hex).
e) If the machine is little endian and the number is an IEEE single-precision floating point value, is the number positive or negative
f) If the machine is little endian and the number is an IEEE single-precision floating point value, determine the decimal equivalent of the number stored at address 100 (you may leave your answer in scientific notation form, as a number times a power of two).

Question 38

Why might stack architectures represent arithmetic expressions in reverse Polish notation

Question 39

a) In a computer instruction format, the instruction length is 11 bits and the size of an address field is 4 bits. Is it possible to have
5 two-address instructions
45 one-address instructions
32 zero-address instructions
using the specified format Justify your answer.
b) Assume that a computer architect has already designed 6 two-address and 24 zeroaddress instructions using the instruction format above. What is the maximum number of one-address instructions that can be added to the instruction set

Question 40

Assuming the same stages as in Example 5.12, explain the potential pipeline hazards (if any) in each of the following code segments.

Reference of Example 5.12:
Suppose we have a 4-stage pipeline, where:
• S1 = fetch instruction
• S2 = decode and calculate effective address
• S3 = fetch operand
• S4 = execute instruction and store results

We must also assume that the architecture provides a means to fetch data and instructions in parallel. This can be done with separate instruction and data paths; however, most memory systems do not allow this. Instead, they provide the operand in cache, which, in most cases, allows the instruction and operand to be fetched simultaneously. Suppose, also, that instruction I3 is a conditional branch statement that alters the execution sequence (so that instead of I4 running next, it transfers control to I8). This results in the pipeline operation shown in Figure 5.6.

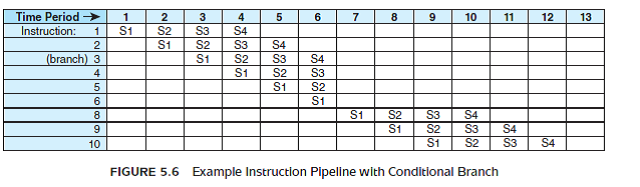

Note that I4, I5, and I6 are fetched and proceed through various stages, but after the execution of I3 (the branch), I4, I5, and I6 are no longer needed. Only after time period 6, when the branch has executed, can the next instruction to be executed (I8) be fetched, after which the pipe refills. From time periods 6 through 9, only one instruction has executed. In a perfect world, for each time period after the pipe originally fills, one instruction should flow out of the pipeline. However, we see in this example that this is not necessarily true.

Question 41

We can design stack architectures, accumulator architectures, or general-purpose register architectures. Explain the differences between these choices and give some situations where one might be better than another.

Question 42

The effective address of an operand is the value of its actual address in memory.

Question 43

Why do we need so many different addressing modes

Question 44

Give an example of a current stack-based architecture and a current GPR-based architecture. How do they differ

Question 45

Stack architectures have good code density and a simple model for evaluation of expressions, but do not allow random access, which can cause a problem with the generation of efficient code.

Question 46

Convert the following expressions from infix to reverse Polish (postfix) notation.

Question 47

Suppose a computer has an instruction format with space for an opcode and either three register values or one register value and an address. What are the various instruction formats that could be used for an ADD instruction on this machine

Question 48

Write code to implement the expression A = ( B + C ) × ( D + E ) on three-, two-, one-, and zero-address machines. In accordance with programming language practice, computing the expression should not change the values of its operands.

Question 49

The first two bytes of a 2M × 16 main memory have the following hex values:
• Byte 0 is FE
• Byte 1 is 01
If these bytes hold a 16-bit two's complement integer, what is its actual decimal value if:
a) memory is big endian
b) memory is little endian

Question 50

Name the seven types of data instructions and explain each.

Question 51

Explain the concept behind instruction pipelining.

Question 52

A digital computer has a memory unit with 24 bits per word. The instruction set consists of 150 different operations. All instructions have an operation code part (opcode) and an address part (allowing for only one address). Each instruction is stored in one word of memory.
a) How many bits are needed for the opcode
b) How many bits are left for the address part of the instruction
c) What is the maximum allowable size for memory
d) What is the largest unsigned binary number that can be accommodated in one word of memory

Question 53

Assume you have a byte-addressable machine that uses 32-bit integers and you are storing the hex value 1234 at address 0:
a) Show how this is stored on a big endian machine.
b) Show how this is stored on a little endian machine.
c) If you wanted to increase the hex value to 123456, which byte assignment would be more efficient, big or little endian Explain your answer.

Question 54

How do memory-memory, register-memory, and load-store architectures differ How are they the same

Question 55

Resource conflicts occur in a pipeline when there are multiple instructions that require the same resource.

Question 56

Given 16-bit instructions, is it possible to use expanding opcodes to allow the following to be encoded assuming we have a total of 32 registers If so, show the encoding. If not, explain why is it not possible.
• 60 instructions with two register operands
• 30 instructions with one register operand
• 3 instructions with one 10-bit address
• 26 instructions with zero operands

Question 57

The memory unit of a computer has 256K words of 32 bits each. The computer has an instruction format with four fields: an opcode field; a mode field to specify one of seven addressing modes; a register address field to specify one of 60 registers; and a memory address field. Assume an instruction is 32 bits long. Answer the following:
a) How large must the mode field be
b) How large must the register field be
c) How large must the address field be
d) How large is the opcode field

Question 58

Explain the difference between register-to-register, register-to-memory, and memory-to- memory instructions.

Question 59

Most architectures today are accumulator based.

Question 60

Convert the following expressions from infix to reverse Polish (postfix) notation.

Question 61

What is the theoretical speedup for a 4-stage pipeline with a 20ns clock cycle if it is processing 100 tasks

Question 62

Suppose an instruction takes four cycles to execute in a nonpipelined CPU: one cycle to fetch the instruction, one cycle to decode the instruction, one cycle to perform the ALU operation, and one cycle to store the result. In a CPU with a four-stage pipeline, that instruction still takes four cycles to execute, so how can we say the pipeline speeds up the execution of the program

Question 63

Most computers typically fall into one of three types of CPU organization: (1) general register organization; (2) single accumulator organization; or (3) stack organization.

Question 64

What kinds of problems do you think endian-ness can cause if you wished to transfer data from a big endian machine to a little endian machine Explain.

Question 65

What is the difference between an arithmetic shift and a logical shift

Question 66

What is the difference between using direct and indirect addressing Give an example.

Question 67

Pick an architecture (other than those covered in this chapter). Do research to find out how your architecture approaches the concepts introduced in this chapter, as was done for Intel, MIPS, and Java.
