Deck 40: Doors and Windows

Question 1

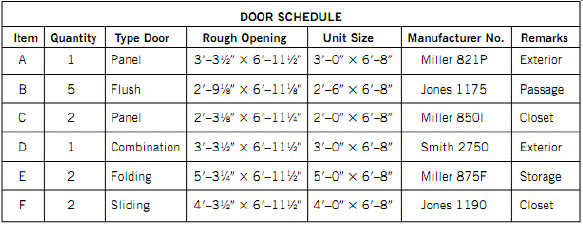

Use the table below for the following questions. What size rough opening is required for an interior door measuring 3 feet by 6 feet 8 inches?

Answer 1

3 feet 3 1/2 inches by 6 feet 11 1/2 inches

Question 2

The most common types of doors are paneled and flush.

Answer 2

True

Question 3

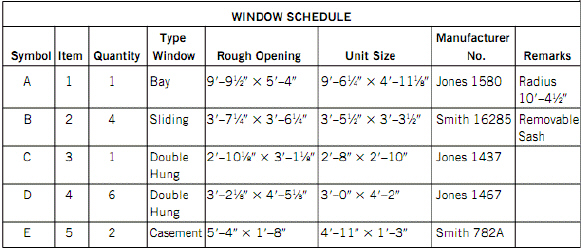

Use the table below for the following questions. What is the difference in square area of the rough opening and the unit size for item 3? Provide the answer in square inches.

Answer 3

178.8906

Question 4

Use the table below for the following questions. Find the total cost of folding closet doors if the unit cost is $202.98.

Question 5

Folding doors often used for closets can be __________.

Question 6

Use the table below for the following questions.

$\begin{array}{c}\text { WINDOW SCHEDULE }\\\begin{array}{|c|c|c|l|l|l|l|l|}\hline \text { Symbol } & \text { Item } & \text { Quantity } & \begin{array}{c}\text { Type } \\\text { Window }\end{array} & \text { Rough Opening } & \text { Unit Size } & \begin{array}{c}\text { Manufacturer } \\\text { No. }\end{array} & \text { Remarks } \\\hline \text { A } & 1 & 1 & \text { Bay } & 9^{\prime}-9 ~~1/2^{\prime \prime} \times 5^{\prime}-4^{\prime \prime} & 9^{\prime}-6~~1/4^{\prime \prime} \times 4^{\prime}-11 ~~1/8^{\prime \prime} & \text { Jones } 1580 &\text { Radius } 10^{\prime}-4 ~~1/2{ }^{\prime \prime}\\\hline \text { B } & 2 & 4 & \text { Sliding } & 3^{\prime}-7~~1/4^{\prime \prime} \times 3^{\prime}-6 ~~1 / 4^{{\prime \prime}} & 3^{\prime}-5~~1/2^{\prime \prime} \times 3^{\prime \prime}-3~~1/ 2^{\prime \prime} & \text { Smith } 16285 &\text { Removable Sash}\\\hline \text { C } & 3 & 1 & \begin{array}{l}\text { Double } \\\text { Hung }\end{array} & 2^{\prime}-10~~1/8^{\prime \prime} \times 3^{\prime}-1~~1 / 8^{\prime \prime} & 2^{\prime}-8^{\prime \prime} \times 2^{\prime}-10^{\prime \prime} & \text { Jones } 1437 \\\hline \text { D } & 4 & 6 & \begin{array}{l}\text { Double } \\\text { Hung }\end{array} & 3^{\prime}-2~~1/8^{\prime \prime} \times 4^{\prime}-5~~1/3^{\prime \prime} & 3^{\prime}-0^{\prime \prime} \times 4^{\prime}-2^{\prime \prime} & \text { Jones } 1467 \\\hline \text { E } & 5 & 2 & \text { Casement } & 5^{\prime}-4^{\prime \prime} \times 1^{\prime}-8^{\prime \prime} & 4^{\prime}-11^{\prime} \times 1^{\prime}-3^{\prime \prime} & \text { Smith } 782 \mathrm{~A} \\\hline\end{array}\end{array}$ Determine the total cost of item 2 if one unit costs $120.44.

A) 240.88
B) 120.44
C) 481.76
D) 361.32

Question 7

Windows, exterior doors, and their frames are items that are usually made at a factory to be installed by the carpenter at the construction site.

Question 8

The most common window types used in residential construction are double hung, casement, hopper, awning, fixed, and horizontal sliding.

Question 9

Use the table below for the following questions. What is the square area occupied by item 1 in square inches?

Question 10

The carpenter usually frames the rough opening approximately __________ inches higher than the door height and approximately __________ inches more than the door width in order to provide for jambs and leveling within the opening.
