Essentials Of Computer Organization And Architecture 4th Edition by Linda Null,Julia Lobur

تمرين 108

Suppose some hypothetical system's control unit has a ring (cycle) counter consisting of some number of D flip-flops. This system runs at 1GHz and has a maximum of 10 micro operations/instruction.
a) What is the maximum frequency of the output (number of signal pulses) output by each flip-flop
b) How long does it take to execute an instruction that requires only 4 micro operations

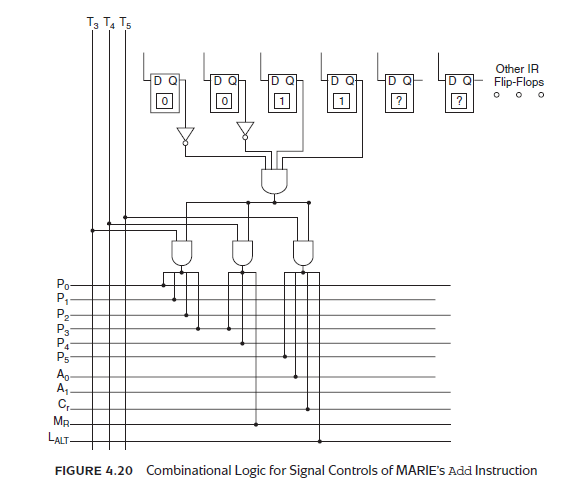

Reference of Figure 4.20:

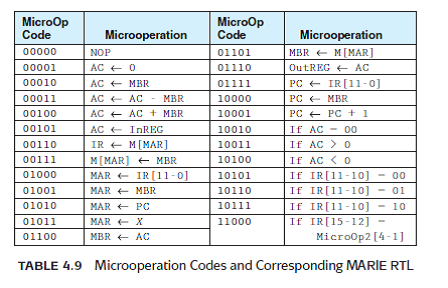

Reference of Table 4.9:
