Essentials Of Computer Organization And Architecture 4th Edition by Linda Null,Julia Lobur

تمرين 69

If each interval shown in Figure 7.11 is 50ns, how long would it take to transfer 10 bytes of data Devise a bus protocol, using as many control lines as you need, that would reduce the time required for this transfer to take place. What happens if the address lines are eliminated and the data bus is used for addressing instead (Hint: An additional control line may be needed.)

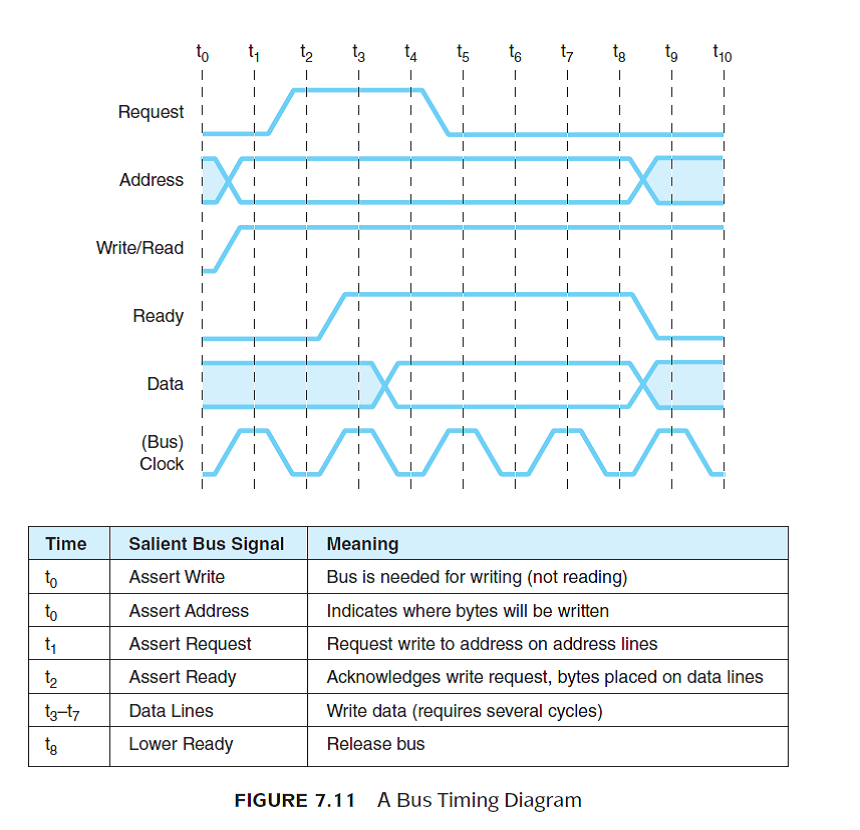

Reference of Figure 7.11:
