Deck 11: Alternating-Current Circuits

Full screen (f)
exit full mode
Question
Inductive reactance XL is given by:

A)L ω \omega
B)L/ ω \omega
C)1/L ω \omega
D)( ω \omega /L)
E)( ω \omega 2L)
Use Space or
up arrow
down arrow
to flip the card.
Question
Determine the impedance for the circuit.  <strong>Determine the impedance for the circuit.  </strong> A)600   \Omega  B)1200  \Omega  C)1800   \Omega  D)2300   \Omega  E)1100   \Omega  <div style=padding-top: 35px>

A)600 Ω\Omega
B)1200 Ω\Omega
C)1800 Ω\Omega
D)2300 Ω\Omega
E)1100 Ω\Omega
Question
The inductance of a tuning circuit of an AM radio is 4.00 mH.Find the capacitance of the circuit required for reception at 1200 kHz.

A)2.10 pF
B)4.40 pF
C)21.2 pF
D)43.4 pF
E)27.6 pF
Question
An ac generator with peak voltage 100 volts is placed across a 10- Ω\Omega resistor.What is the average power dissipated?

A)100 W
B)150 W
C)500 W
D)1000 W
E)2000 W
Question
The total impedance Z of an RLC circuit driven by an ac voltage source at angular frequency ω \omega is:

A)  <strong>The total impedance Z of an RLC circuit driven by an ac voltage source at angular frequency   \omega   is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
B)  <strong>The total impedance Z of an RLC circuit driven by an ac voltage source at angular frequency   \omega   is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
C)  <strong>The total impedance Z of an RLC circuit driven by an ac voltage source at angular frequency   \omega   is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
D)  <strong>The total impedance Z of an RLC circuit driven by an ac voltage source at angular frequency   \omega   is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
E)  <strong>The total impedance Z of an RLC circuit driven by an ac voltage source at angular frequency   \omega   is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
Question
Determine the rms voltage for the circuit. <strong>Determine the rms voltage for the circuit.  </strong> A)99 V (rms) B)140 V (rms) C)196 V (rms) D)70 V (rms) E)110 V (rms) <div style=padding-top: 35px>

A)99 V (rms)
B)140 V (rms)
C)196 V (rms)
D)70 V (rms)
E)110 V (rms)
Question
Determine the rms current for the circuit. <strong>Determine the rms current for the circuit.  </strong> A)55 mA B)77 mA C)99 mA D)0.19 A E)61 mA <div style=padding-top: 35px>

A)55 mA
B)77 mA
C)99 mA
D)0.19 A
E)61 mA
Question
The voltage 8.00 sin (400t) is applied to a series RLC circuit, with R = 200 Ω\Omega , L = 0.100 H, and C = 1.00 μ\mu F.What are the impedance Z and the phase angle θ\theta ?

A)200 Ω\Omega , -37.0 °\degree
B)566 Ω\Omega , +87.0 °\degree
C)2 470 Ω\Omega , -85.4 °\degree
D)2 540 Ω\Omega , -88.8 °\degree
E)393 Ω\Omega , -63.0 °\degree
Question
A high-voltage powerline operates at 500 000 V-rms and carries an rms current of 500 A.If the resistance of the cable is 0.050 Ω\Omega /km, what is the resistive power loss in 200 km of the powerline?

A)250 kW
B)500 kW
C)1 Megawatt
D)2.5 Megawatts
E)250 Megawatts
Question
Determine the resonant frequency of the circuit. <strong>Determine the resonant frequency of the circuit.  </strong> A)159 Hz B)32 Hz C)5 Hz D)500 Hz E)79.5 Hz <div style=padding-top: 35px>

A)159 Hz
B)32 Hz
C)5 Hz
D)500 Hz
E)79.5 Hz
Question
At what frequency will a 50.0-mH inductor have a reactance XL = 700 Ω\Omega ?

A)352 Hz
B)777 Hz
C)1.25 kHz
D)2.23 kHz
E)14 kHz
Question
An LC circuit is to have resonant oscillations at 5.0 MHz.Find the capacitance of a capacitor which will work with a 1.0-mH inductor.

A)2.0 mF
B)1.0 μ\mu F
C)0.020 μ\mu F
D)1.0 pF
E)40 pF
Question
Determine the rms voltage drop across the inductor in the circuit. <strong>Determine the rms voltage drop across the inductor in the circuit.  </strong> A)11 V B)27.5 V C)33 V D)38.5 V E)30.5 V <div style=padding-top: 35px>

A)11 V
B)27.5 V
C)33 V
D)38.5 V
E)30.5 V
Question
Determine the rms voltage drop across the resistor in the circuit. <strong>Determine the rms voltage drop across the resistor in the circuit.  </strong> A)55 V B)77 V C)9.9 V D)5.5 V E)61 V <div style=padding-top: 35px>

A)55 V
B)77 V
C)9.9 V
D)5.5 V
E)61 V
Question
If the input to an RLC series circuit is V = Vm cos ω \omega t, then the current in the circuit is:

A)cos ω \omega t  <strong>If the input to an RLC series circuit is V = Vm cos   \omega  t, then the current in the circuit is:</strong> A)cos  \omega  t   B)   C)   D)   E)   <div style=padding-top: 35px>
B)  <strong>If the input to an RLC series circuit is V = Vm cos   \omega  t, then the current in the circuit is:</strong> A)cos  \omega  t   B)   C)   D)   E)   <div style=padding-top: 35px>
C)  <strong>If the input to an RLC series circuit is V = Vm cos   \omega  t, then the current in the circuit is:</strong> A)cos  \omega  t   B)   C)   D)   E)   <div style=padding-top: 35px>
D)  <strong>If the input to an RLC series circuit is V = Vm cos   \omega  t, then the current in the circuit is:</strong> A)cos  \omega  t   B)   C)   D)   E)   <div style=padding-top: 35px>
E)  <strong>If the input to an RLC series circuit is V = Vm cos   \omega  t, then the current in the circuit is:</strong> A)cos  \omega  t   B)   C)   D)   E)   <div style=padding-top: 35px>
Question
A 10.0- μ\mu F capacitor is plugged into a 110 V-rms 60.0-Hz voltage source, with an ammeter in series.What is the rms value of the current through the capacitor?

A)0.202 A (rms)
B)0.415 A (rms)
C)0.626 A (rms)
D)0.838 A (rms)
E)0.066 A (rms)
Question
If an R = 1.0-k Ω\Omega resistor, a C = 1.0- μ\mu F capacitor, and an L = 0.20-H inductor are connected in series with a V = 150 sin (377t) volts source, what is the maximum current delivered by the source?

A)0.007 0 A
B)27 mA
C)54 mA
D)0.31 A
E)0.34 A
Question
At what frequency will a 12- μ\mu F capacitor have a reactance XC = 300 Ω\Omega ?

A)44 Hz
B)88 Hz
C)180 Hz
D)350 Hz
E)280 Hz
Question
Capacitive reactance XC is given by:

A)1/ ω \omega C
B)( ω \omega C)
C)( ω \omega /C)
D)C/ ω \omega
E)1/ ω \omega 2C
Question
An electric heater designed for export to the US market draws an average power of 1100 Watts when plugged into a typical US 110 V-rms outlet.Calculate the resistance of the heater and the rms current.

A)11 Ω\Omega , 10 A (rms)
B)110 Ω\Omega , 10 A (rms)
C)10 Ω\Omega , 11 A (rms)
D)10 Ω\Omega , 110 A (rms)
E)0.09 Ω\Omega , 11 A (rms)
Question
A 10- μ\mu F capacitor in an LC circuit made entirely of superconducting materials (R = 0 Ω\Omega ) is charged to 100 μ\mu C.Then a superconducting switch is closed.At t = 0 s, plate 1 is positively charged and plate 2 is negatively charged.At a later time, Vab = +10 V.At that time, Vdc is:  <strong>A 10- \mu F capacitor in an LC circuit made entirely of superconducting materials (R = 0   \Omega   ) is charged to 100  \mu C.Then a superconducting switch is closed.At t = 0 s, plate 1 is positively charged and plate 2 is negatively charged.At a later time, Vab = +10 V.At that time, Vdc is:  </strong> A)0 V. B)3.54 V. C)5.0 V. D)7.07 V. E)10 V. <div style=padding-top: 35px>

A)0 V.
B)3.54 V.
C)5.0 V.
D)7.07 V.
E)10 V.
Question
A 60.0-Hz ac generator with a peak voltage of 110 V drives a series RC circuit with R = 10.0 Ω\Omega and C = 300 μ\mu F.The peak current in the circuit is:

A)8.24 A.
B)8.84 A.
C)11.0 A.
D)12.4 A.
E)23.5 A.
Question
A 60.0-Hz ac generator with a peak voltage of 110 V drives a series RL circuit with R = 10.0 Ω\Omega and L = 10.0 mH.The impedance is:

A)3.77 Ω\Omega .
B)9.26 Ω\Omega .
C)10.0 Ω\Omega .
D)10.7 Ω\Omega .
E)13.8 Ω\Omega .
Question
A step-up transformer has an input voltage of 110 V (rms).There are 100 turns on the primary and 1 500 on the secondary.What is the output voltage?

A)1600 V (max)
B)1650 V (rms)
C)3260 V (max)
D)165 kV (rms)
E)7.3 V (rms)
Question
The average power input to a series alternating current circuit is minimum when:

A)there are only a resistor and capacitor in the circuit.
B)there are only a resistor and inductor in the circuit.
C)there is only a resistor in the circuit.
D)XL = XC and the circuit contains a resistor, an inductor and a capacitor.
E)there is only a capacitor in the circuit.
Question
The graphs below show a voltage phasor at different instances of time.The voltage phasor which shows the instantaneous value of the voltage with the largest magnitude is:

A) <strong>The graphs below show a voltage phasor at different instances of time.The voltage phasor which shows the instantaneous value of the voltage with the largest magnitude is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
B) <strong>The graphs below show a voltage phasor at different instances of time.The voltage phasor which shows the instantaneous value of the voltage with the largest magnitude is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
C) <strong>The graphs below show a voltage phasor at different instances of time.The voltage phasor which shows the instantaneous value of the voltage with the largest magnitude is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
D) <strong>The graphs below show a voltage phasor at different instances of time.The voltage phasor which shows the instantaneous value of the voltage with the largest magnitude is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
E) <strong>The graphs below show a voltage phasor at different instances of time.The voltage phasor which shows the instantaneous value of the voltage with the largest magnitude is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
Question
Whenever the alternating current frequency in a series RLC circuit is halved:

A)the inductive reactance is doubled and the capacitive reactance is halved.
B)the inductive reactance is doubled and the capacitive reactance is doubled.
C)the inductive reactance is halved and the capacitive reactance is halved.
D)the inductive reactance is halved and the capacitive reactance is doubled.
E)the reactance of the circuit remains the same.
Question
In a typical transmission line, the current I is very small and the voltage V is very large.A unit length of line has resistance R.For a power line that supplies power to 10 000 households, we can conclude that:

A)IV = I2R.
B)I = V/R.
C)IV < I2R.
D)IV > I2R.
E)I2R = 0.
Question
A current I = 3 sin (400 t) amperes flows in a series RL circuit in which L = 1 mH and R = 100 Ω\Omega .What is the average power loss?

A)225 W
B)450 W
C)980 W
D)1.12 kW
E)900 W
Question
The primary winding of an electric train transformer has 400 turns and the secondary has 50.If the input voltage is 120V(rms) what is the output voltage?

A)15 V (rms)
B)30 V (rms)
C)60 V (rms)
D)2.4 V (rms)
E)960 V (rms)
Question
What is the average power dissipation in an RLC series circuit with R = 10 Ω\Omega , L = 0.1 H, C = 10 μ\mu F when driven at resonance by a 100 V-rms source?

A)100 W
B)500 W
C)1000 W
D)2 kW
E)700 W
Question
A 60.0-Hz ac generator with a peak voltage of 110 V drives a series RC circuit with R = 10.0 Ω\Omega and C = 300 μ\mu F.The power factor, cos ϕ\phi , is:

A)(-1.00.)
B)(-0.749.)
C)+0.749.
D)+0.834.
E)+1.00.
Question

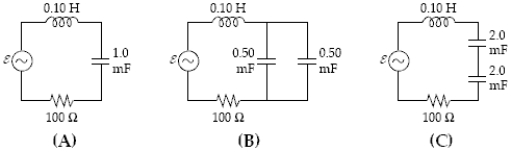

All three circuits shown below have R = 100 Ω\Omega , L = 0.1 H and emf ε\varepsilon = (5.0 V) sin (377 t).Which statement regarding the angular resonance frequencies ω \omega A, ω \omega B and ω \omega C is correct?  <strong>All three circuits shown below have R = 100  \Omega  , L = 0.1 H and emf  \varepsilon = (5.0 V) sin (377 t).Which statement regarding the angular resonance frequencies   \omega  A,   \omega  B and   \omega  C is correct?  </strong> A)  \omega  C >   \omega  A =  \omega  B) B)(  \omega  C <   \omega  A =   \omega  B) C)(  \omega  A =   \omega  B =   \omega  C) D)(  \omega  B <   \omega  A =   \omega  C) E)(  \omega  B >   \omega  A =   \omega  C) <div style=padding-top: 35px>

A) ω \omega C > ω \omega A = ω \omega B)
B)( ω \omega C < ω \omega A = ω \omega B)
C)( ω \omega A = ω \omega B = ω \omega C)
D)( ω \omega B < ω \omega A = ω \omega C)
E)( ω \omega B > ω \omega A = ω \omega C)
Question
An alternating current circuit has resistance R, inductance L and capacitance C in series with a voltage source.Which statement is correct?

A)The voltage across the capacitor leads the voltage across the inductor by 90 °\degree .
B)The voltage across the inductor leads the voltage across the capacitor by 90 °\degree .
C)The voltage across the inductor leads the voltage across the resistor by 180 °\degree .
D)The voltage across the inductor is out of phase with the voltage across the capacitor by 180 °\degree .
E)Both voltages lead the voltage across the resistor by 90 °\degree .
Question
The impedance of the parallel RLC circuit shown is given by: <strong>The impedance of the parallel RLC circuit shown is given by:  </strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>

A) <strong>The impedance of the parallel RLC circuit shown is given by:  </strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
B) <strong>The impedance of the parallel RLC circuit shown is given by:  </strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
C) <strong>The impedance of the parallel RLC circuit shown is given by:  </strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
D) <strong>The impedance of the parallel RLC circuit shown is given by:  </strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
E) <strong>The impedance of the parallel RLC circuit shown is given by:  </strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
Question
A transformer is to be designed to increase the 30 kV-rms output of a generator to the transmission-line voltage of 345 kV-rms.If the primary winding has 80 turns, how many turns must the secondary have?

A)6
B)70
C)920
D)9200
E)12
Question
The phase angle between V and I is: <strong>The phase angle between V and I is:  </strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>

A) <strong>The phase angle between V and I is:  </strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
B) <strong>The phase angle between V and I is:  </strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
C) <strong>The phase angle between V and I is:  </strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
D) <strong>The phase angle between V and I is:  </strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
E) <strong>The phase angle between V and I is:  </strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
Question
Determine the rms voltage drop across the capacitor in the circuit. <strong>Determine the rms voltage drop across the capacitor in the circuit.  </strong> A)55 V B)77 V C)110 V D)154 V E)198 V <div style=padding-top: 35px>

A)55 V
B)77 V
C)110 V
D)154 V
E)198 V
Question
For driving voltage V = Vm sin ω \omega t, the current through the resistor is:  <strong>For driving voltage V = Vm sin   \omega  t, the current through the resistor is:  </strong> A)Vm sin (  \omega  t +  \phi  ) B)Vm cos (  \omega  t +  \phi  ) C)sin (  \omega  t +  \phi  )   D)sin (  \omega  t +  \phi  )   E)sin   \omega  t   <div style=padding-top: 35px>

A)Vm sin ( ω \omega t + ϕ\phi )
B)Vm cos ( ω \omega t + ϕ\phi )
C)sin ( ω \omega t + ϕ\phi )  <strong>For driving voltage V = Vm sin   \omega  t, the current through the resistor is:  </strong> A)Vm sin (  \omega  t +  \phi  ) B)Vm cos (  \omega  t +  \phi  ) C)sin (  \omega  t +  \phi  )   D)sin (  \omega  t +  \phi  )   E)sin   \omega  t   <div style=padding-top: 35px>
D)sin ( ω \omega t + ϕ\phi )  <strong>For driving voltage V = Vm sin   \omega  t, the current through the resistor is:  </strong> A)Vm sin (  \omega  t +  \phi  ) B)Vm cos (  \omega  t +  \phi  ) C)sin (  \omega  t +  \phi  )   D)sin (  \omega  t +  \phi  )   E)sin   \omega  t   <div style=padding-top: 35px>
E)sin ω \omega t  <strong>For driving voltage V = Vm sin   \omega  t, the current through the resistor is:  </strong> A)Vm sin (  \omega  t +  \phi  ) B)Vm cos (  \omega  t +  \phi  ) C)sin (  \omega  t +  \phi  )   D)sin (  \omega  t +  \phi  )   E)sin   \omega  t   <div style=padding-top: 35px>
Question
Calculate Vout/Vin for the circuit if R = 2.0 k Ω\Omega , C = 0.020 μ\mu F and V = 140V sin(50 000t).  <strong>Calculate Vout/Vin for the circuit if R = 2.0 k  \Omega , C = 0.020 \mu F and V = 140V sin(50 000t).  </strong> A)0.02 B)0.45 C)0.80 D)0.98 E)2.2 <div style=padding-top: 35px>

A)0.02
B)0.45
C)0.80
D)0.98
E)2.2
Question
The graphs below represent current and voltage phasors at one instant of time.The solid arrows represent the voltage phasors, Δ\Delta Vmax, and the dashed arrows represent the current phasors, Imax.The graph which shows the correct relationship between current and voltage phasors for a capacitor in an RC circuit is:

A)  <strong>The graphs below represent current and voltage phasors at one instant of time.The solid arrows represent the voltage phasors,  \Delta Vmax, and the dashed arrows represent the current phasors, Imax.The graph which shows the correct relationship between current and voltage phasors for a capacitor in an RC circuit is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
B)  <strong>The graphs below represent current and voltage phasors at one instant of time.The solid arrows represent the voltage phasors,  \Delta Vmax, and the dashed arrows represent the current phasors, Imax.The graph which shows the correct relationship between current and voltage phasors for a capacitor in an RC circuit is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
C)  <strong>The graphs below represent current and voltage phasors at one instant of time.The solid arrows represent the voltage phasors,  \Delta Vmax, and the dashed arrows represent the current phasors, Imax.The graph which shows the correct relationship between current and voltage phasors for a capacitor in an RC circuit is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
D)  <strong>The graphs below represent current and voltage phasors at one instant of time.The solid arrows represent the voltage phasors,  \Delta Vmax, and the dashed arrows represent the current phasors, Imax.The graph which shows the correct relationship between current and voltage phasors for a capacitor in an RC circuit is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
E)  <strong>The graphs below represent current and voltage phasors at one instant of time.The solid arrows represent the voltage phasors,  \Delta Vmax, and the dashed arrows represent the current phasors, Imax.The graph which shows the correct relationship between current and voltage phasors for a capacitor in an RC circuit is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
Question
The graphs below show the phasors Δ\Delta Vmax and Imax for five RLC series circuits.The solid arrows represent the voltage phasors, Δ\Delta V, and the dashed arrows represent the current phasors, Imax.The graph which represents a circuit where the inductive reactance is greater than the capacitive reactance is:

A)  <strong>The graphs below show the phasors  \Delta Vmax and Imax for five RLC series circuits.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which represents a circuit where the inductive reactance is greater than the capacitive reactance is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
B)  <strong>The graphs below show the phasors  \Delta Vmax and Imax for five RLC series circuits.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which represents a circuit where the inductive reactance is greater than the capacitive reactance is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
C)  <strong>The graphs below show the phasors  \Delta Vmax and Imax for five RLC series circuits.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which represents a circuit where the inductive reactance is greater than the capacitive reactance is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
D)  <strong>The graphs below show the phasors  \Delta Vmax and Imax for five RLC series circuits.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which represents a circuit where the inductive reactance is greater than the capacitive reactance is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
E)  <strong>The graphs below show the phasors  \Delta Vmax and Imax for five RLC series circuits.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which represents a circuit where the inductive reactance is greater than the capacitive reactance is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
Question
In a parallel RLC circuit, where IR = IR, max sin( ω \omega t), the current through the capacitor, IC, is:

A)IC = -IC, max sin( ω \omega t).
B)IC = IC, max sin( ω \omega t).
C)IC = -IC, max cos( ω \omega t).
D)IC = IC, max cos( ω \omega t).
E)IC = IC, max tan( ω \omega t).
Question
An ac power generator produces 50 A (rms) at 3600 V.The voltage is stepped up to 100 000 V by an ideal transformer and the energy is transmitted through a long distance power line which has a resistance of 100 ohms.What percentage of the power delivered by the generator is dissipated as heat in the long-distance power line?
Question
Suppose the circuit parameters in a series RLC circuit are: L = 1.00 μ\mu H, C = 10.0 nF, R = 100 Ω\Omega , and the source voltage is 220 V.Determine the resonant frequency of the circuit and the amplitude of the current at resonance.
Question
A 10.0- Ω\Omega resistor, 10.0-mH inductor, and 10.0- μ\mu F capacitor are connected in series with a 10.0-kHz voltage source.The rms current through the circuit is 0.200 A.Find the rms voltage drop across each of the 3 elements.
Question
Which of the following is true about a diode?

A)A diode causes the voltage to shift in phase by 90 °\degree , i.e., a right angle.
B)A diode has high resistance in one current direction and low resistance in the opposite current direction.
C)A diode can only be used with a transformer.
D)All filter circuits contain a diode.
E)All of the above.
Question
In a parallel RLC circuit, where IR = IR, max sin( ω \omega t), the current through the inductor, IL, is:

A)IL = -IL, max sin( ω \omega t).
B)IL = IL, max sin( ω \omega t).
C)IL = -IL, max cos( ω \omega t).
D)IL = IL, max cos( ω \omega t).
E)IL = IL, max tan( ω \omega t).
Question
The graphs below show the phasors Δ\Delta Vmax and Imax for five RLC series circuits.The solid arrows represent the voltage phasors, Δ\Delta V, and the dashed arrows represent the current phasors, Imax.The graph which represents a circuit where the capacitive reactance is greater than the inductive reactance is:

A)  <strong>The graphs below show the phasors  \Delta Vmax and Imax for five RLC series circuits.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which represents a circuit where the capacitive reactance is greater than the inductive reactance is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
B)  <strong>The graphs below show the phasors  \Delta Vmax and Imax for five RLC series circuits.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which represents a circuit where the capacitive reactance is greater than the inductive reactance is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
C)  <strong>The graphs below show the phasors  \Delta Vmax and Imax for five RLC series circuits.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which represents a circuit where the capacitive reactance is greater than the inductive reactance is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
D)  <strong>The graphs below show the phasors  \Delta Vmax and Imax for five RLC series circuits.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which represents a circuit where the capacitive reactance is greater than the inductive reactance is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
E)  <strong>The graphs below show the phasors  \Delta Vmax and Imax for five RLC series circuits.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which represents a circuit where the capacitive reactance is greater than the inductive reactance is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
Question
The graphs below represent current and voltage phasors at one instant of time.The solid arrows represent the voltage phasors, Δ\Delta V, and the dashed arrows represent the current phasors, Imax.The graph which shows the correct relationship between current and voltage phasors for an inductor in an RL circuit is:

A)  <strong>The graphs below represent current and voltage phasors at one instant of time.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which shows the correct relationship between current and voltage phasors for an inductor in an RL circuit is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
B)  <strong>The graphs below represent current and voltage phasors at one instant of time.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which shows the correct relationship between current and voltage phasors for an inductor in an RL circuit is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
C)  <strong>The graphs below represent current and voltage phasors at one instant of time.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which shows the correct relationship between current and voltage phasors for an inductor in an RL circuit is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
D)  <strong>The graphs below represent current and voltage phasors at one instant of time.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which shows the correct relationship between current and voltage phasors for an inductor in an RL circuit is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
E)  <strong>The graphs below represent current and voltage phasors at one instant of time.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which shows the correct relationship between current and voltage phasors for an inductor in an RL circuit is:</strong> A)   B)   C)   D)   E)   <div style=padding-top: 35px>
Unlock Deck
Sign up to unlock the cards in this deck!
Unlock Deck
Unlock Deck
1/50
auto play flashcards
Play
simple tutorial
Full screen (f)
exit full mode
Deck 11: Alternating-Current Circuits
1
Inductive reactance XL is given by:

A)L ω \omega
B)L/ ω \omega
C)1/L ω \omega
D)( ω \omega /L)
E)( ω \omega 2L)
L ω \omega
2
Determine the impedance for the circuit.  <strong>Determine the impedance for the circuit.  </strong> A)600   \Omega  B)1200  \Omega  C)1800   \Omega  D)2300   \Omega  E)1100   \Omega

A)600 Ω\Omega
B)1200 Ω\Omega
C)1800 Ω\Omega
D)2300 Ω\Omega
E)1100 Ω\Omega
1800 Ω\Omega
3
The inductance of a tuning circuit of an AM radio is 4.00 mH.Find the capacitance of the circuit required for reception at 1200 kHz.

A)2.10 pF
B)4.40 pF
C)21.2 pF
D)43.4 pF
E)27.6 pF
4.40 pF
4
An ac generator with peak voltage 100 volts is placed across a 10- Ω\Omega resistor.What is the average power dissipated?

A)100 W
B)150 W
C)500 W
D)1000 W
E)2000 W
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
5
The total impedance Z of an RLC circuit driven by an ac voltage source at angular frequency ω \omega is:

A)  <strong>The total impedance Z of an RLC circuit driven by an ac voltage source at angular frequency   \omega   is:</strong> A)   B)   C)   D)   E)
B)  <strong>The total impedance Z of an RLC circuit driven by an ac voltage source at angular frequency   \omega   is:</strong> A)   B)   C)   D)   E)
C)  <strong>The total impedance Z of an RLC circuit driven by an ac voltage source at angular frequency   \omega   is:</strong> A)   B)   C)   D)   E)
D)  <strong>The total impedance Z of an RLC circuit driven by an ac voltage source at angular frequency   \omega   is:</strong> A)   B)   C)   D)   E)
E)  <strong>The total impedance Z of an RLC circuit driven by an ac voltage source at angular frequency   \omega   is:</strong> A)   B)   C)   D)   E)
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
6
Determine the rms voltage for the circuit. <strong>Determine the rms voltage for the circuit.  </strong> A)99 V (rms) B)140 V (rms) C)196 V (rms) D)70 V (rms) E)110 V (rms)

A)99 V (rms)
B)140 V (rms)
C)196 V (rms)
D)70 V (rms)
E)110 V (rms)
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
7
Determine the rms current for the circuit. <strong>Determine the rms current for the circuit.  </strong> A)55 mA B)77 mA C)99 mA D)0.19 A E)61 mA

A)55 mA
B)77 mA
C)99 mA
D)0.19 A
E)61 mA
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
8
The voltage 8.00 sin (400t) is applied to a series RLC circuit, with R = 200 Ω\Omega , L = 0.100 H, and C = 1.00 μ\mu F.What are the impedance Z and the phase angle θ\theta ?

A)200 Ω\Omega , -37.0 °\degree
B)566 Ω\Omega , +87.0 °\degree
C)2 470 Ω\Omega , -85.4 °\degree
D)2 540 Ω\Omega , -88.8 °\degree
E)393 Ω\Omega , -63.0 °\degree
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
9
A high-voltage powerline operates at 500 000 V-rms and carries an rms current of 500 A.If the resistance of the cable is 0.050 Ω\Omega /km, what is the resistive power loss in 200 km of the powerline?

A)250 kW
B)500 kW
C)1 Megawatt
D)2.5 Megawatts
E)250 Megawatts
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
10
Determine the resonant frequency of the circuit. <strong>Determine the resonant frequency of the circuit.  </strong> A)159 Hz B)32 Hz C)5 Hz D)500 Hz E)79.5 Hz

A)159 Hz
B)32 Hz
C)5 Hz
D)500 Hz
E)79.5 Hz
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
11
At what frequency will a 50.0-mH inductor have a reactance XL = 700 Ω\Omega ?

A)352 Hz
B)777 Hz
C)1.25 kHz
D)2.23 kHz
E)14 kHz
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
12
An LC circuit is to have resonant oscillations at 5.0 MHz.Find the capacitance of a capacitor which will work with a 1.0-mH inductor.

A)2.0 mF
B)1.0 μ\mu F
C)0.020 μ\mu F
D)1.0 pF
E)40 pF
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
13
Determine the rms voltage drop across the inductor in the circuit. <strong>Determine the rms voltage drop across the inductor in the circuit.  </strong> A)11 V B)27.5 V C)33 V D)38.5 V E)30.5 V

A)11 V
B)27.5 V
C)33 V
D)38.5 V
E)30.5 V
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
14
Determine the rms voltage drop across the resistor in the circuit. <strong>Determine the rms voltage drop across the resistor in the circuit.  </strong> A)55 V B)77 V C)9.9 V D)5.5 V E)61 V

A)55 V
B)77 V
C)9.9 V
D)5.5 V
E)61 V
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
15
If the input to an RLC series circuit is V = Vm cos ω \omega t, then the current in the circuit is:

A)cos ω \omega t  <strong>If the input to an RLC series circuit is V = Vm cos   \omega  t, then the current in the circuit is:</strong> A)cos  \omega  t   B)   C)   D)   E)
B)  <strong>If the input to an RLC series circuit is V = Vm cos   \omega  t, then the current in the circuit is:</strong> A)cos  \omega  t   B)   C)   D)   E)
C)  <strong>If the input to an RLC series circuit is V = Vm cos   \omega  t, then the current in the circuit is:</strong> A)cos  \omega  t   B)   C)   D)   E)
D)  <strong>If the input to an RLC series circuit is V = Vm cos   \omega  t, then the current in the circuit is:</strong> A)cos  \omega  t   B)   C)   D)   E)
E)  <strong>If the input to an RLC series circuit is V = Vm cos   \omega  t, then the current in the circuit is:</strong> A)cos  \omega  t   B)   C)   D)   E)
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
16
A 10.0- μ\mu F capacitor is plugged into a 110 V-rms 60.0-Hz voltage source, with an ammeter in series.What is the rms value of the current through the capacitor?

A)0.202 A (rms)
B)0.415 A (rms)
C)0.626 A (rms)
D)0.838 A (rms)
E)0.066 A (rms)
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
17
If an R = 1.0-k Ω\Omega resistor, a C = 1.0- μ\mu F capacitor, and an L = 0.20-H inductor are connected in series with a V = 150 sin (377t) volts source, what is the maximum current delivered by the source?

A)0.007 0 A
B)27 mA
C)54 mA
D)0.31 A
E)0.34 A
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
18
At what frequency will a 12- μ\mu F capacitor have a reactance XC = 300 Ω\Omega ?

A)44 Hz
B)88 Hz
C)180 Hz
D)350 Hz
E)280 Hz
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
19
Capacitive reactance XC is given by:

A)1/ ω \omega C
B)( ω \omega C)
C)( ω \omega /C)
D)C/ ω \omega
E)1/ ω \omega 2C
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
20
An electric heater designed for export to the US market draws an average power of 1100 Watts when plugged into a typical US 110 V-rms outlet.Calculate the resistance of the heater and the rms current.

A)11 Ω\Omega , 10 A (rms)
B)110 Ω\Omega , 10 A (rms)
C)10 Ω\Omega , 11 A (rms)
D)10 Ω\Omega , 110 A (rms)
E)0.09 Ω\Omega , 11 A (rms)
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
21
A 10- μ\mu F capacitor in an LC circuit made entirely of superconducting materials (R = 0 Ω\Omega ) is charged to 100 μ\mu C.Then a superconducting switch is closed.At t = 0 s, plate 1 is positively charged and plate 2 is negatively charged.At a later time, Vab = +10 V.At that time, Vdc is:  <strong>A 10- \mu F capacitor in an LC circuit made entirely of superconducting materials (R = 0   \Omega   ) is charged to 100  \mu C.Then a superconducting switch is closed.At t = 0 s, plate 1 is positively charged and plate 2 is negatively charged.At a later time, Vab = +10 V.At that time, Vdc is:  </strong> A)0 V. B)3.54 V. C)5.0 V. D)7.07 V. E)10 V.

A)0 V.
B)3.54 V.
C)5.0 V.
D)7.07 V.
E)10 V.
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
22
A 60.0-Hz ac generator with a peak voltage of 110 V drives a series RC circuit with R = 10.0 Ω\Omega and C = 300 μ\mu F.The peak current in the circuit is:

A)8.24 A.
B)8.84 A.
C)11.0 A.
D)12.4 A.
E)23.5 A.
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
23
A 60.0-Hz ac generator with a peak voltage of 110 V drives a series RL circuit with R = 10.0 Ω\Omega and L = 10.0 mH.The impedance is:

A)3.77 Ω\Omega .
B)9.26 Ω\Omega .
C)10.0 Ω\Omega .
D)10.7 Ω\Omega .
E)13.8 Ω\Omega .
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
24
A step-up transformer has an input voltage of 110 V (rms).There are 100 turns on the primary and 1 500 on the secondary.What is the output voltage?

A)1600 V (max)
B)1650 V (rms)
C)3260 V (max)
D)165 kV (rms)
E)7.3 V (rms)
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
25
The average power input to a series alternating current circuit is minimum when:

A)there are only a resistor and capacitor in the circuit.
B)there are only a resistor and inductor in the circuit.
C)there is only a resistor in the circuit.
D)XL = XC and the circuit contains a resistor, an inductor and a capacitor.
E)there is only a capacitor in the circuit.
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
26
The graphs below show a voltage phasor at different instances of time.The voltage phasor which shows the instantaneous value of the voltage with the largest magnitude is:

A) <strong>The graphs below show a voltage phasor at different instances of time.The voltage phasor which shows the instantaneous value of the voltage with the largest magnitude is:</strong> A)   B)   C)   D)   E)
B) <strong>The graphs below show a voltage phasor at different instances of time.The voltage phasor which shows the instantaneous value of the voltage with the largest magnitude is:</strong> A)   B)   C)   D)   E)
C) <strong>The graphs below show a voltage phasor at different instances of time.The voltage phasor which shows the instantaneous value of the voltage with the largest magnitude is:</strong> A)   B)   C)   D)   E)
D) <strong>The graphs below show a voltage phasor at different instances of time.The voltage phasor which shows the instantaneous value of the voltage with the largest magnitude is:</strong> A)   B)   C)   D)   E)
E) <strong>The graphs below show a voltage phasor at different instances of time.The voltage phasor which shows the instantaneous value of the voltage with the largest magnitude is:</strong> A)   B)   C)   D)   E)
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
27
Whenever the alternating current frequency in a series RLC circuit is halved:

A)the inductive reactance is doubled and the capacitive reactance is halved.
B)the inductive reactance is doubled and the capacitive reactance is doubled.
C)the inductive reactance is halved and the capacitive reactance is halved.
D)the inductive reactance is halved and the capacitive reactance is doubled.
E)the reactance of the circuit remains the same.
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
28
In a typical transmission line, the current I is very small and the voltage V is very large.A unit length of line has resistance R.For a power line that supplies power to 10 000 households, we can conclude that:

A)IV = I2R.
B)I = V/R.
C)IV < I2R.
D)IV > I2R.
E)I2R = 0.
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
29
A current I = 3 sin (400 t) amperes flows in a series RL circuit in which L = 1 mH and R = 100 Ω\Omega .What is the average power loss?

A)225 W
B)450 W
C)980 W
D)1.12 kW
E)900 W
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
30
The primary winding of an electric train transformer has 400 turns and the secondary has 50.If the input voltage is 120V(rms) what is the output voltage?

A)15 V (rms)
B)30 V (rms)
C)60 V (rms)
D)2.4 V (rms)
E)960 V (rms)
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
31
What is the average power dissipation in an RLC series circuit with R = 10 Ω\Omega , L = 0.1 H, C = 10 μ\mu F when driven at resonance by a 100 V-rms source?

A)100 W
B)500 W
C)1000 W
D)2 kW
E)700 W
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
32
A 60.0-Hz ac generator with a peak voltage of 110 V drives a series RC circuit with R = 10.0 Ω\Omega and C = 300 μ\mu F.The power factor, cos ϕ\phi , is:

A)(-1.00.)
B)(-0.749.)
C)+0.749.
D)+0.834.
E)+1.00.
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
33
All three circuits shown below have R = 100 Ω\Omega , L = 0.1 H and emf ε\varepsilon = (5.0 V) sin (377 t).Which statement regarding the angular resonance frequencies ω \omega A, ω \omega B and ω \omega C is correct?  <strong>All three circuits shown below have R = 100  \Omega  , L = 0.1 H and emf  \varepsilon = (5.0 V) sin (377 t).Which statement regarding the angular resonance frequencies   \omega  A,   \omega  B and   \omega  C is correct?  </strong> A)  \omega  C >   \omega  A =  \omega  B) B)(  \omega  C <   \omega  A =   \omega  B) C)(  \omega  A =   \omega  B =   \omega  C) D)(  \omega  B <   \omega  A =   \omega  C) E)(  \omega  B >   \omega  A =   \omega  C)

A) ω \omega C > ω \omega A = ω \omega B)
B)( ω \omega C < ω \omega A = ω \omega B)
C)( ω \omega A = ω \omega B = ω \omega C)
D)( ω \omega B < ω \omega A = ω \omega C)
E)( ω \omega B > ω \omega A = ω \omega C)
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
34
An alternating current circuit has resistance R, inductance L and capacitance C in series with a voltage source.Which statement is correct?

A)The voltage across the capacitor leads the voltage across the inductor by 90 °\degree .
B)The voltage across the inductor leads the voltage across the capacitor by 90 °\degree .
C)The voltage across the inductor leads the voltage across the resistor by 180 °\degree .
D)The voltage across the inductor is out of phase with the voltage across the capacitor by 180 °\degree .
E)Both voltages lead the voltage across the resistor by 90 °\degree .
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
35
The impedance of the parallel RLC circuit shown is given by: <strong>The impedance of the parallel RLC circuit shown is given by:  </strong> A)   B)   C)   D)   E)

A) <strong>The impedance of the parallel RLC circuit shown is given by:  </strong> A)   B)   C)   D)   E)
B) <strong>The impedance of the parallel RLC circuit shown is given by:  </strong> A)   B)   C)   D)   E)
C) <strong>The impedance of the parallel RLC circuit shown is given by:  </strong> A)   B)   C)   D)   E)
D) <strong>The impedance of the parallel RLC circuit shown is given by:  </strong> A)   B)   C)   D)   E)
E) <strong>The impedance of the parallel RLC circuit shown is given by:  </strong> A)   B)   C)   D)   E)
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
36
A transformer is to be designed to increase the 30 kV-rms output of a generator to the transmission-line voltage of 345 kV-rms.If the primary winding has 80 turns, how many turns must the secondary have?

A)6
B)70
C)920
D)9200
E)12
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
37
The phase angle between V and I is: <strong>The phase angle between V and I is:  </strong> A)   B)   C)   D)   E)

A) <strong>The phase angle between V and I is:  </strong> A)   B)   C)   D)   E)
B) <strong>The phase angle between V and I is:  </strong> A)   B)   C)   D)   E)
C) <strong>The phase angle between V and I is:  </strong> A)   B)   C)   D)   E)
D) <strong>The phase angle between V and I is:  </strong> A)   B)   C)   D)   E)
E) <strong>The phase angle between V and I is:  </strong> A)   B)   C)   D)   E)
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
38
Determine the rms voltage drop across the capacitor in the circuit. <strong>Determine the rms voltage drop across the capacitor in the circuit.  </strong> A)55 V B)77 V C)110 V D)154 V E)198 V

A)55 V
B)77 V
C)110 V
D)154 V
E)198 V
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
39
For driving voltage V = Vm sin ω \omega t, the current through the resistor is:  <strong>For driving voltage V = Vm sin   \omega  t, the current through the resistor is:  </strong> A)Vm sin (  \omega  t +  \phi  ) B)Vm cos (  \omega  t +  \phi  ) C)sin (  \omega  t +  \phi  )   D)sin (  \omega  t +  \phi  )   E)sin   \omega  t

A)Vm sin ( ω \omega t + ϕ\phi )
B)Vm cos ( ω \omega t + ϕ\phi )
C)sin ( ω \omega t + ϕ\phi )  <strong>For driving voltage V = Vm sin   \omega  t, the current through the resistor is:  </strong> A)Vm sin (  \omega  t +  \phi  ) B)Vm cos (  \omega  t +  \phi  ) C)sin (  \omega  t +  \phi  )   D)sin (  \omega  t +  \phi  )   E)sin   \omega  t
D)sin ( ω \omega t + ϕ\phi )  <strong>For driving voltage V = Vm sin   \omega  t, the current through the resistor is:  </strong> A)Vm sin (  \omega  t +  \phi  ) B)Vm cos (  \omega  t +  \phi  ) C)sin (  \omega  t +  \phi  )   D)sin (  \omega  t +  \phi  )   E)sin   \omega  t
E)sin ω \omega t  <strong>For driving voltage V = Vm sin   \omega  t, the current through the resistor is:  </strong> A)Vm sin (  \omega  t +  \phi  ) B)Vm cos (  \omega  t +  \phi  ) C)sin (  \omega  t +  \phi  )   D)sin (  \omega  t +  \phi  )   E)sin   \omega  t
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
40
Calculate Vout/Vin for the circuit if R = 2.0 k Ω\Omega , C = 0.020 μ\mu F and V = 140V sin(50 000t).  <strong>Calculate Vout/Vin for the circuit if R = 2.0 k  \Omega , C = 0.020 \mu F and V = 140V sin(50 000t).  </strong> A)0.02 B)0.45 C)0.80 D)0.98 E)2.2

A)0.02
B)0.45
C)0.80
D)0.98
E)2.2
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
41
The graphs below represent current and voltage phasors at one instant of time.The solid arrows represent the voltage phasors, Δ\Delta Vmax, and the dashed arrows represent the current phasors, Imax.The graph which shows the correct relationship between current and voltage phasors for a capacitor in an RC circuit is:

A)  <strong>The graphs below represent current and voltage phasors at one instant of time.The solid arrows represent the voltage phasors,  \Delta Vmax, and the dashed arrows represent the current phasors, Imax.The graph which shows the correct relationship between current and voltage phasors for a capacitor in an RC circuit is:</strong> A)   B)   C)   D)   E)
B)  <strong>The graphs below represent current and voltage phasors at one instant of time.The solid arrows represent the voltage phasors,  \Delta Vmax, and the dashed arrows represent the current phasors, Imax.The graph which shows the correct relationship between current and voltage phasors for a capacitor in an RC circuit is:</strong> A)   B)   C)   D)   E)
C)  <strong>The graphs below represent current and voltage phasors at one instant of time.The solid arrows represent the voltage phasors,  \Delta Vmax, and the dashed arrows represent the current phasors, Imax.The graph which shows the correct relationship between current and voltage phasors for a capacitor in an RC circuit is:</strong> A)   B)   C)   D)   E)
D)  <strong>The graphs below represent current and voltage phasors at one instant of time.The solid arrows represent the voltage phasors,  \Delta Vmax, and the dashed arrows represent the current phasors, Imax.The graph which shows the correct relationship between current and voltage phasors for a capacitor in an RC circuit is:</strong> A)   B)   C)   D)   E)
E)  <strong>The graphs below represent current and voltage phasors at one instant of time.The solid arrows represent the voltage phasors,  \Delta Vmax, and the dashed arrows represent the current phasors, Imax.The graph which shows the correct relationship between current and voltage phasors for a capacitor in an RC circuit is:</strong> A)   B)   C)   D)   E)
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
42
The graphs below show the phasors Δ\Delta Vmax and Imax for five RLC series circuits.The solid arrows represent the voltage phasors, Δ\Delta V, and the dashed arrows represent the current phasors, Imax.The graph which represents a circuit where the inductive reactance is greater than the capacitive reactance is:

A)  <strong>The graphs below show the phasors  \Delta Vmax and Imax for five RLC series circuits.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which represents a circuit where the inductive reactance is greater than the capacitive reactance is:</strong> A)   B)   C)   D)   E)
B)  <strong>The graphs below show the phasors  \Delta Vmax and Imax for five RLC series circuits.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which represents a circuit where the inductive reactance is greater than the capacitive reactance is:</strong> A)   B)   C)   D)   E)
C)  <strong>The graphs below show the phasors  \Delta Vmax and Imax for five RLC series circuits.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which represents a circuit where the inductive reactance is greater than the capacitive reactance is:</strong> A)   B)   C)   D)   E)
D)  <strong>The graphs below show the phasors  \Delta Vmax and Imax for five RLC series circuits.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which represents a circuit where the inductive reactance is greater than the capacitive reactance is:</strong> A)   B)   C)   D)   E)
E)  <strong>The graphs below show the phasors  \Delta Vmax and Imax for five RLC series circuits.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which represents a circuit where the inductive reactance is greater than the capacitive reactance is:</strong> A)   B)   C)   D)   E)
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
43
In a parallel RLC circuit, where IR = IR, max sin( ω \omega t), the current through the capacitor, IC, is:

A)IC = -IC, max sin( ω \omega t).
B)IC = IC, max sin( ω \omega t).
C)IC = -IC, max cos( ω \omega t).
D)IC = IC, max cos( ω \omega t).
E)IC = IC, max tan( ω \omega t).
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
44
An ac power generator produces 50 A (rms) at 3600 V.The voltage is stepped up to 100 000 V by an ideal transformer and the energy is transmitted through a long distance power line which has a resistance of 100 ohms.What percentage of the power delivered by the generator is dissipated as heat in the long-distance power line?
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
45
Suppose the circuit parameters in a series RLC circuit are: L = 1.00 μ\mu H, C = 10.0 nF, R = 100 Ω\Omega , and the source voltage is 220 V.Determine the resonant frequency of the circuit and the amplitude of the current at resonance.
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
46
A 10.0- Ω\Omega resistor, 10.0-mH inductor, and 10.0- μ\mu F capacitor are connected in series with a 10.0-kHz voltage source.The rms current through the circuit is 0.200 A.Find the rms voltage drop across each of the 3 elements.
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
47
Which of the following is true about a diode?

A)A diode causes the voltage to shift in phase by 90 °\degree , i.e., a right angle.
B)A diode has high resistance in one current direction and low resistance in the opposite current direction.
C)A diode can only be used with a transformer.
D)All filter circuits contain a diode.
E)All of the above.
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
48
In a parallel RLC circuit, where IR = IR, max sin( ω \omega t), the current through the inductor, IL, is:

A)IL = -IL, max sin( ω \omega t).
B)IL = IL, max sin( ω \omega t).
C)IL = -IL, max cos( ω \omega t).
D)IL = IL, max cos( ω \omega t).
E)IL = IL, max tan( ω \omega t).
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
49
The graphs below show the phasors Δ\Delta Vmax and Imax for five RLC series circuits.The solid arrows represent the voltage phasors, Δ\Delta V, and the dashed arrows represent the current phasors, Imax.The graph which represents a circuit where the capacitive reactance is greater than the inductive reactance is:

A)  <strong>The graphs below show the phasors  \Delta Vmax and Imax for five RLC series circuits.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which represents a circuit where the capacitive reactance is greater than the inductive reactance is:</strong> A)   B)   C)   D)   E)
B)  <strong>The graphs below show the phasors  \Delta Vmax and Imax for five RLC series circuits.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which represents a circuit where the capacitive reactance is greater than the inductive reactance is:</strong> A)   B)   C)   D)   E)
C)  <strong>The graphs below show the phasors  \Delta Vmax and Imax for five RLC series circuits.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which represents a circuit where the capacitive reactance is greater than the inductive reactance is:</strong> A)   B)   C)   D)   E)
D)  <strong>The graphs below show the phasors  \Delta Vmax and Imax for five RLC series circuits.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which represents a circuit where the capacitive reactance is greater than the inductive reactance is:</strong> A)   B)   C)   D)   E)
E)  <strong>The graphs below show the phasors  \Delta Vmax and Imax for five RLC series circuits.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which represents a circuit where the capacitive reactance is greater than the inductive reactance is:</strong> A)   B)   C)   D)   E)
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
50
The graphs below represent current and voltage phasors at one instant of time.The solid arrows represent the voltage phasors, Δ\Delta V, and the dashed arrows represent the current phasors, Imax.The graph which shows the correct relationship between current and voltage phasors for an inductor in an RL circuit is:

A)  <strong>The graphs below represent current and voltage phasors at one instant of time.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which shows the correct relationship between current and voltage phasors for an inductor in an RL circuit is:</strong> A)   B)   C)   D)   E)
B)  <strong>The graphs below represent current and voltage phasors at one instant of time.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which shows the correct relationship between current and voltage phasors for an inductor in an RL circuit is:</strong> A)   B)   C)   D)   E)
C)  <strong>The graphs below represent current and voltage phasors at one instant of time.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which shows the correct relationship between current and voltage phasors for an inductor in an RL circuit is:</strong> A)   B)   C)   D)   E)
D)  <strong>The graphs below represent current and voltage phasors at one instant of time.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which shows the correct relationship between current and voltage phasors for an inductor in an RL circuit is:</strong> A)   B)   C)   D)   E)
E)  <strong>The graphs below represent current and voltage phasors at one instant of time.The solid arrows represent the voltage phasors,  \Delta V, and the dashed arrows represent the current phasors, Imax.The graph which shows the correct relationship between current and voltage phasors for an inductor in an RL circuit is:</strong> A)   B)   C)   D)   E)
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
Unlock Deck
k this deck
locked card icon
Unlock Deck
Unlock for access to all 50 flashcards in this deck.
