For the network shown in Figure RT10.1, determine the current flowing in each branch using:
(a) Kirchhoff's laws
(b) Mesh-current analysis
(c) Nodal analysis
(d) the superposition theorem
(e) Thevenin's theorem
(f) Norton's theorem
Demonstrate that each method gives the same value for each of the branch currents.

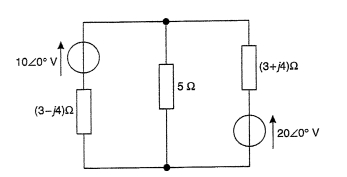

Figure RT10.1

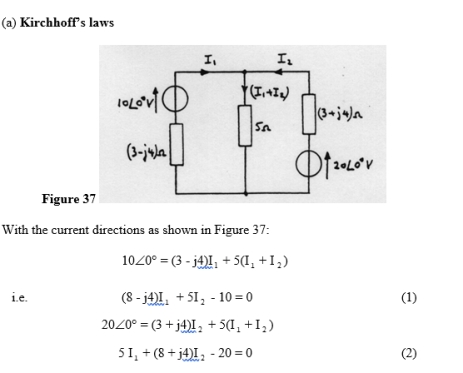

(a) Kirchhoff's laws

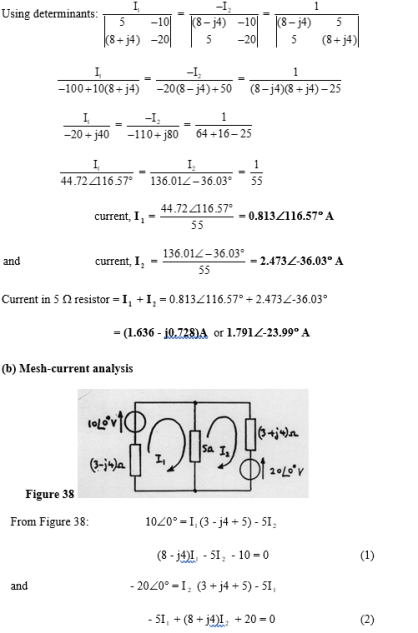

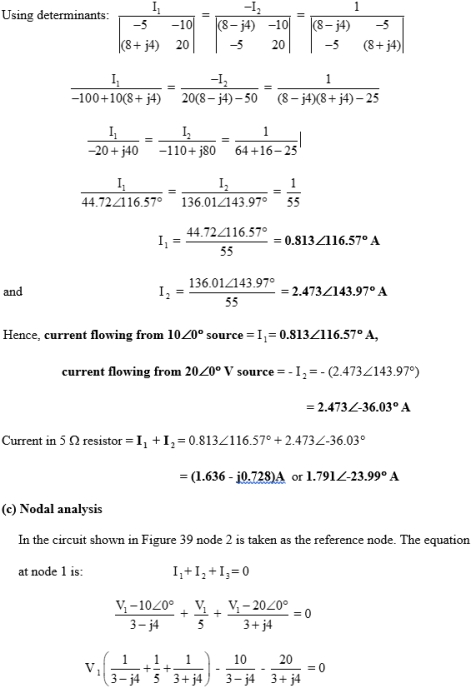

(b) Mesh-current analysis

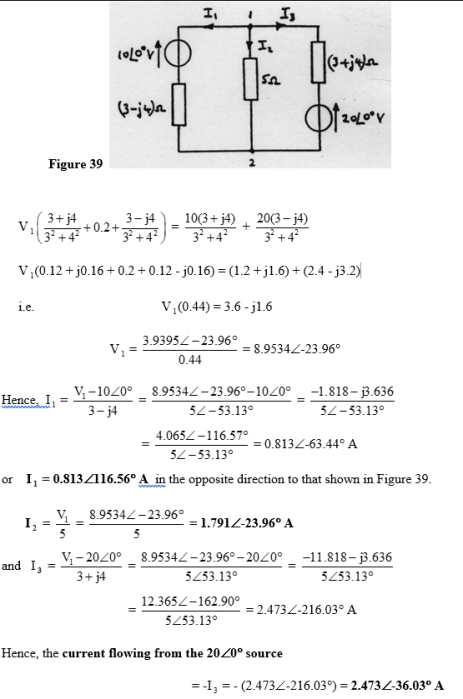

(c) Nodal analysis
(d) the superposition theorem

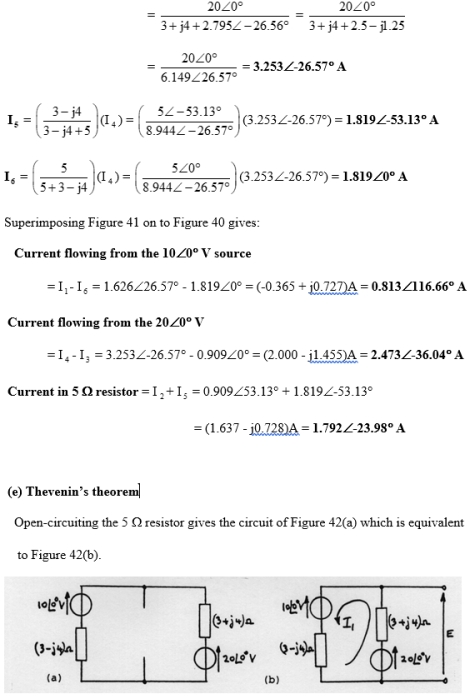

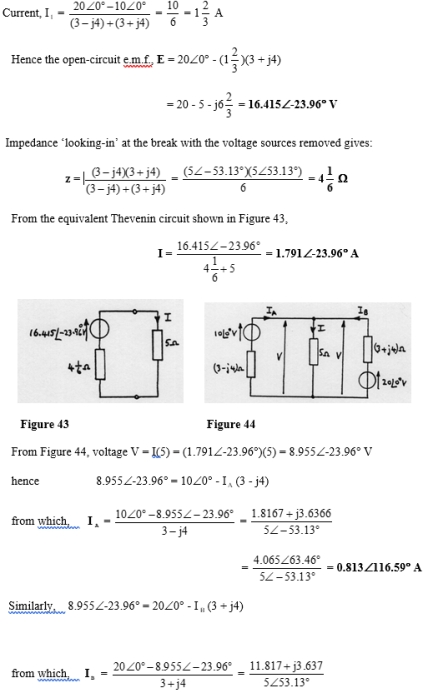

(e) Thevenin's theorem

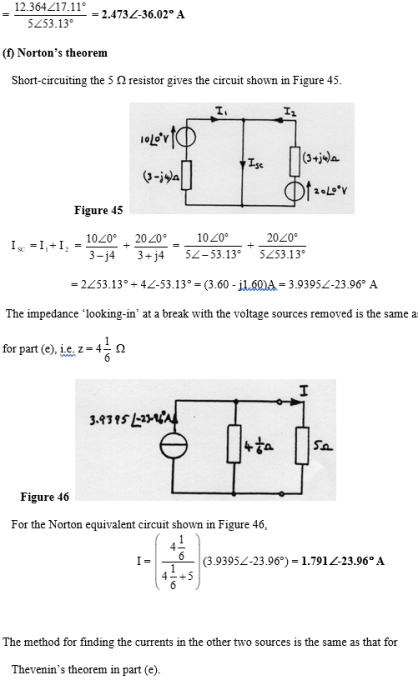

(f) Norton's theorem
Demonstrate that each method gives the same value for each of the branch currents.
Figure RT10.1
