Electrical Circuit Theory and Technology 6th Edition by John Bird
Edition 6ISBN: 978-1138673496Electrical Circuit Theory and Technology 6th Edition by John Bird
Edition 6ISBN: 978-1138673496 Exercise 9

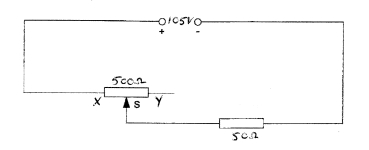

For the circuit shown in Figure RT2.3, calculate the current flowing in the 50 load and
the voltage drop across the load when
(a) XS is 3/5 of XY
(b) point S coincides with point Y
Figure RT2.3
the voltage drop across the load when
(a) XS is 3/5 of XY
(b) point S coincides with point Y
Figure RT2.3
