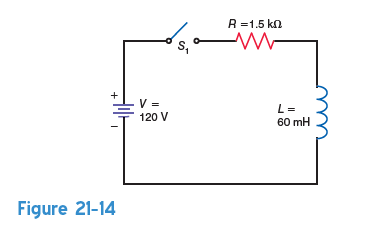

In Fig. 21-14,
a. what is the time constant of the circuit with S 1 closed
b. what is the eventual steady-state current with S 1 closed
c. what is the value of the circuit current at the first instant S 1 is closed ( t = 0 s)
d. what is the value of the circuit current exactly one time constant after S 1 is closed
e. how long after S 1 is closed will it take before the circuit current reaches its steady-state value
a. what is the time constant of the circuit with S 1 closed
b. what is the eventual steady-state current with S 1 closed
c. what is the value of the circuit current at the first instant S 1 is closed ( t = 0 s)
d. what is the value of the circuit current exactly one time constant after S 1 is closed
e. how long after S 1 is closed will it take before the circuit current reaches its steady-state value
