Edition 11ISBN: 978-1118539293 Exercise 117

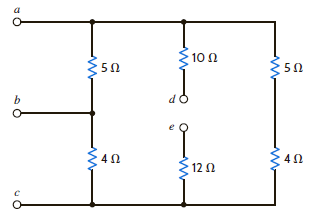

Given the resistor configuration shown in Fig. P2.68, find the equivalent resistance between the following sets of terminals: (1) a and b, (2) b and c, (3) a and c, (4) d and e , (5) a and e, (6) c and d , (7) a and d , (8) c and e , (9) b and d , and (10) b and e.
Figure P2.68
Figure P2.68
Explanation
Verified
Verified
Draw the circuit diagram.
Figure 1
(1)...
