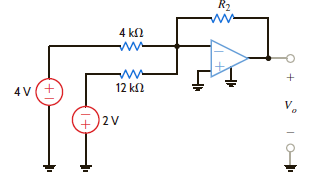

Given the summing amplifier shown in Fig. 4PFE-1, select the values of R 2 that will produce an output voltage of -3 V.
a. 4.42 k
b. 6.33 k
c. 3.6 k
d. 5.14 k
Figure 4PFE-1
a. 4.42 k
b. 6.33 k
c. 3.6 k
d. 5.14 k
Figure 4PFE-1
Explanation
Verified
Verified
Refer to Figure 4PFE-1 in the text book....
