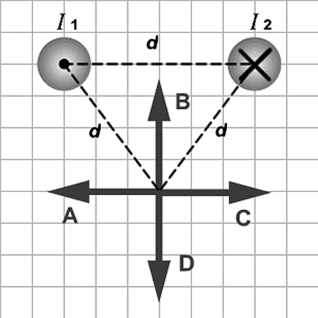

The figure shows two long wires carrying equal currents I₁ and I₂ flowing in opposite directions. Which of the arrows labeled A through D correctly represents the direction of the magnetic field due to the wires at a point located at an equal distance d from each wire? A) A B) B C) C D) D E) The magnetic field is zero at that point.

Question

Quizplus · Accepted Answer

The Answer of The figure shows two long wires carrying equal currents I₁ and I₂ flowing in opposite directions. Which of the arrows labeled A through D correctly represents the direction of the magnetic field due to the wires at a point located at an equal distance d from each wire? A) A B) B C) C D) D E) The magnetic field is zero at that point.
