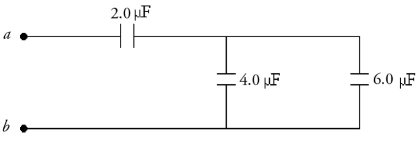

Three capacitors are connected as shown in the figure. What is the equivalent capacitance between points a and b?
A) 1.7 µF
B) 4.0 µF
C) 7.1 µF
D) 12 µF
E) 8.0 µF

Question

Three capacitors are connected as shown in the figure. What is the equivalent capacitance between points a and b?
A) 1.7 µF
B) 4.0 µF
C) 7.1 µF
D) 12 µF
E) 8.0 µF

Quizplus · Accepted Answer

The Answer of Three capacitors are connected as shown in the figure. What is the equivalent capacitance between points a and b?
A) 1.7 µF
B) 4.0 µF
C) 7.1 µF
D) 12 µF
E) 8.0 µF
