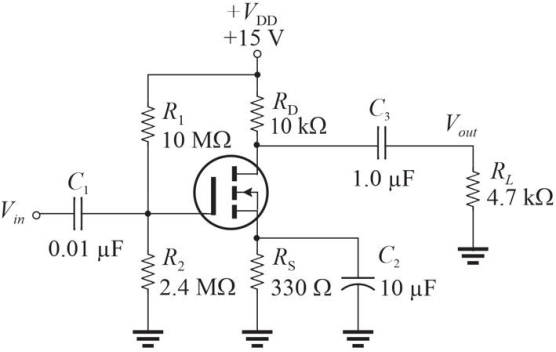

Figure 3 R S provides feedback for bias stability -Refer to Figure 3. Assume you are troubleshooting dc voltages with no signal input. You find that V_DD= V_D= 15 V. This could be caused by A)open R1 B)shorted RL C)open gate lead on the transistor D)all of the above

Question

Quizplus · Accepted Answer

The Answer of Figure 3 R S provides feedback for bias stability -Refer to Figure 3. Assume you are troubleshooting dc voltages with no signal input. You find that V_DD= V_D= 15 V. This could be caused by A)open R1 B)shorted RL C)open gate lead on the transistor D)all of the above

Figure 3 RS provides Feedback for Bias Stability

Figure 3 R_Sprovides Feedback for Bias Stability
