Figure 6 -Refer to Figure 6(a). the Circuit Is

Question 19

Multiple Choice

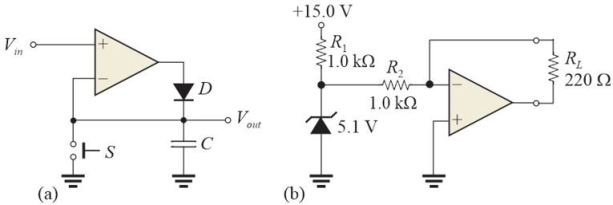

Figure 6 -Refer to Figure 6(a) . The circuit is A) a peak detector B) an antilog amplifier C) a clamping circuit D) a current source Figure 6
-Refer to Figure 6(a) . The circuit is


A) a peak detector
B) an antilog amplifier
C) a clamping circuit
D) a current source

Correct Answer:
