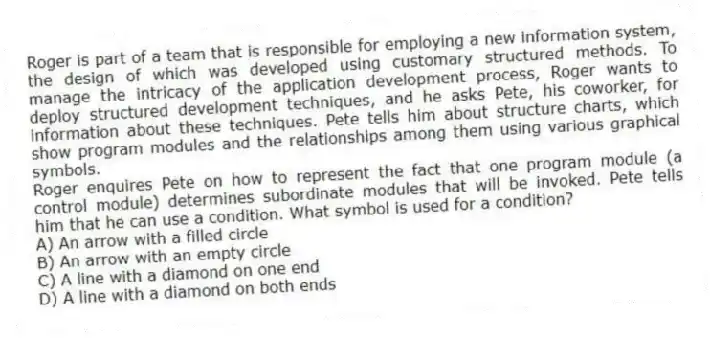

Roger is part of a team that is responsible for employing a new information system, the design of which was developed using customary structured methods. To manage the intricacy of the application development process, Roger wants to deploy structured development techniques, and he asks Pete, his coworker, for information about these techniques. Pete tells him about structure charts, which show program modules and the relationships among them using various graphical symbols.
-Roger enquires Pete on how to represent the fact that one program module (a control module) determines subordinate modules that will be invoked. Pete tells him that he can use a condition. What symbol is used for a condition?
A) An arrow with a filled circle
B) An arrow with an empty circle
C) A line with a diamond on one end
D) A line with a diamond on both ends

Question

Quizplus · Accepted Answer

A line with a diamond on one end is used to represent a condition, where the module on the non-diamond end executes only if the condition is satisfied. An arrow with a filled circle represents an iteration or loop, while an arrow with an empty circle represents a module that calls another module but does not wait for it to complete. A line with a diamond on both ends is not used in structure charts.
