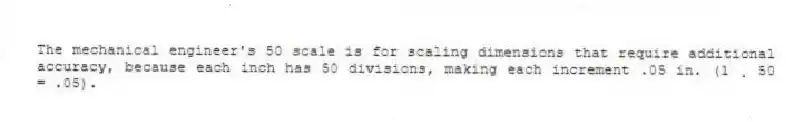

The mechanical engineer's 50 scale is for scaling dimensions that require additional accuracy, because each inch has 50 divisions, making each increment .05 in. (1 ¸ 50 = .05).

Question

Quizplus · Accepted Answer

The mechanical engineer's 50 scale means each inch on the drawing represents 50 inches in the real world, not that each inch is divided into 50 increments for accuracy.
