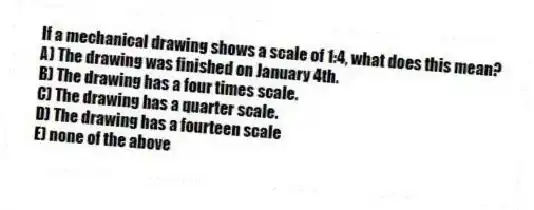

If a mechanical drawing shows a scale of 1:4, what does this mean?
A) The drawing was finished on January 4th.
B) The drawing has a four times scale.
C) The drawing has a quarter scale.
D) The drawing has a fourteen scale
E) none of the above

Question

Quizplus · Accepted Answer

A scale of 1:4 means that every unit of measurement on the drawing represents four of the same units in the actual object, thus it is a quarter scale of the real size.
