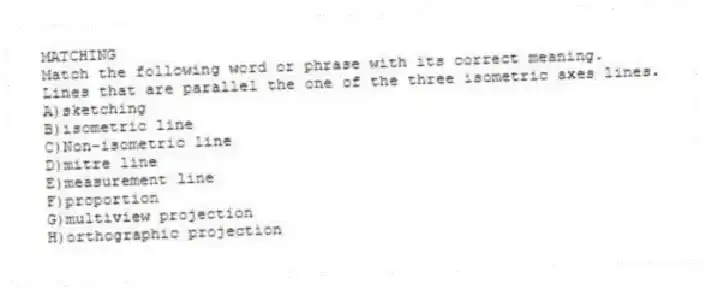

MATCHING
Match the following word or phrase with its correct meaning.
-Lines that are parallel the one of the three isometric axes lines.
A)sketching
B)isometric line
C)Non-isometric line
D)mitre line
E)measurement line
F)proportion
G)multiview projection
H)orthographic projection

Question

Quizplus · Accepted Answer

Isometric lines are lines that are parallel to one of the three isometric axes lines, creating a 3D effect in a 2D drawing.

Other definitions:
A) Sketching: creating a rough, freehand drawing
C) Non-isometric line: a line that is not parallel to any of the three isometric axes lines
D) Mitre line: a line that joins two intersecting planes at a 45-degree angle
E) Measurement line: a line used to indicate the size or dimensions of an object in a drawing
F) Proportion: the relationship between different parts of an object in terms of their size, shape, and position
G) Multiview projection: a type of drawing that shows an object from multiple angles
H) Orthographic projection: a type of drawing that represents a 3D object in 2D by projecting its views onto a series of planes.
