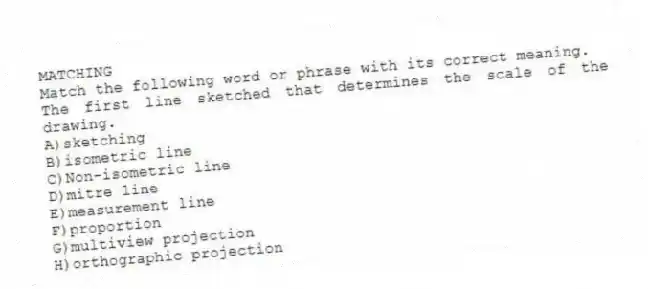

MATCHING
Match the following word or phrase with its correct meaning.
-The first line sketched that determines the scale of the drawing.
A)sketching
B)isometric line
C)Non-isometric line
D)mitre line
E)measurement line
F)proportion
G)multiview projection
H)orthographic projection

Question

Quizplus · Accepted Answer

A measurement line is used to determine the scale of a drawing.

Answer: A
 Sketching refers to the act of quickly drawing freehand lines to represent an object or scene.

Answer: B
 Isometric lines are used in 3D drawings to show objects at a 30 degree angle from the horizontal.

Answer: C
 Non-isometric lines are used in 3D drawings to show objects at any angle other than 30 degrees from the horizontal.

Answer: F
 Proportion refers to the relationship between the size of different elements in a drawing.

Answer: H
 Orthographic projection is a method of showing a 3D object in two dimensions, using parallel lines to represent the object's height, width, and depth.

Answer: G
 Multiview projection is a method of showing a 3D object in two dimensions by drawing it from multiple angles or views.

Answer: D
 A mitre line is a diagonal line used to show the intersection of two surfaces in a drawing.
