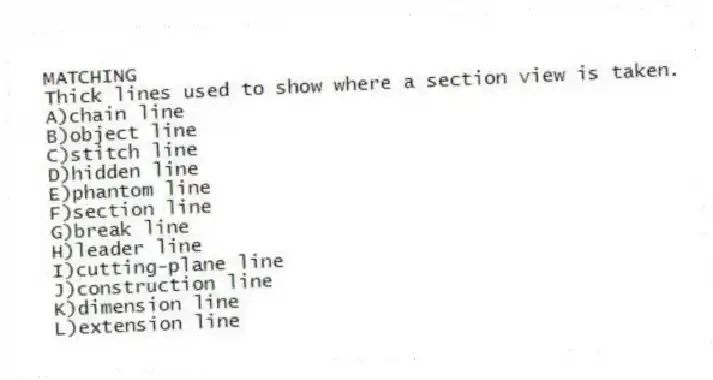

MATCHING
-Thick lines used to show where a section view is taken.
A)chain line
B)object line
C)stitch line
D)hidden line
E)phantom line
F)section line
G)break line
H)leader line
I)cutting-plane line
J)construction line
K)dimension line
L)extension line

Question

Quizplus · Accepted Answer

Cutting-plane lines are thick lines used to indicate where the section view is taken.

Answer: J
 Construction lines are thin, lightly drawn lines used to guide the drawing of other lines and shapes. They are not used to indicate the location of section views.

MATCHING -Thick Lines Used to Show Where a Section View Is
