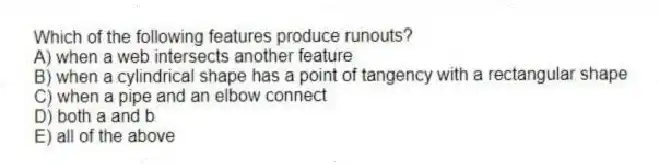

Which of the following features produce runouts?
A) when a web intersects another feature
B) when a cylindrical shape has a point of tangency with a rectangular shape
C) when a pipe and an elbow connect
D) both a and b
E) all of the above

Question

Quizplus · Accepted Answer

Both A and B can produce runouts. When a web intersects another feature, it creates a pocket or a depression, resulting in a runout. Similarly, when a cylindrical shape has a point of tangency with a rectangular shape, it creates a corner, which can lead to a runout. However, C is not a valid option because connecting a pipe and an elbow does not necessarily produce runouts.
