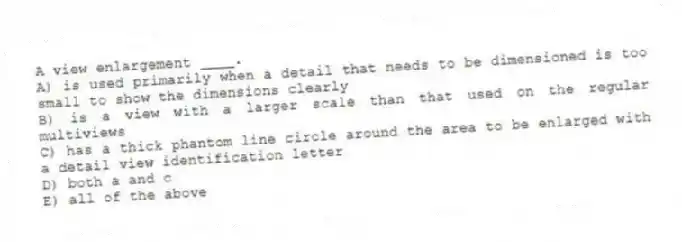

A view enlargement ____.
A) is used primarily when a detail that needs to be dimensioned is too small to show the dimensions clearly
B) is a view with a larger scale than that used on the regular multiviews
C) has a thick phantom line circle around the area to be enlarged with a detail view identification letter
D) both a and c
E) all of the above

Question

Quizplus · Accepted Answer

Option A is correct as a view enlargement is typically used when a detail is too small to be dimensioned clearly. Option B is incorrect as a view enlargement does not necessarily need to have a larger scale than the regular multiviews. Option C is partially correct as a thick phantom line circle is usually used to show the area of enlargement, but it does not necessarily have to include a detail view identification letter. Therefore, option D is the best choice as it includes both correct statements.
