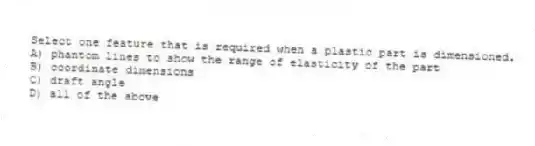

Select one feature that is required when a plastic part is dimensioned.
A) phantom lines to show the range of elasticity of the part
B) coordinate dimensions
C) draft angle
D) all of the above

Question

Quizplus · Accepted Answer

When dimensioning a plastic part, a draft angle should always be specified as it is necessary to ensure that the part can be easily ejected from the mold. Phantom lines to show the range of elasticity and coordinate dimensions may be useful for certain parts, but they are not always required.
