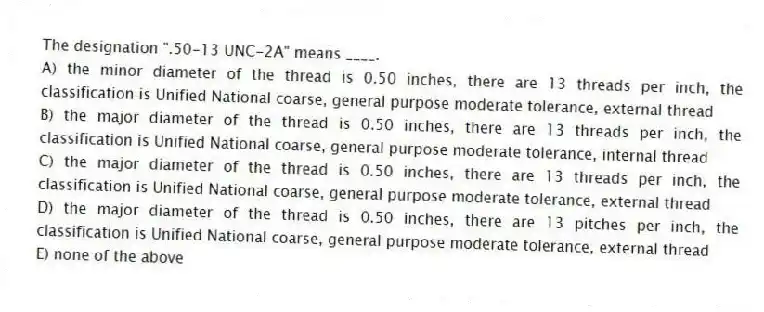

The designation ".50-13 UNC-2A" means ____.
A) the minor diameter of the thread is 0.50 inches, there are 13 threads per inch, the classification is Unified National coarse, general purpose moderate tolerance, external thread
B) the major diameter of the thread is 0.50 inches, there are 13 threads per inch, the classification is Unified National coarse, general purpose moderate tolerance, internal thread
C) the major diameter of the thread is 0.50 inches, there are 13 threads per inch, the classification is Unified National coarse, general purpose moderate tolerance, external thread
D) the major diameter of the thread is 0.50 inches, there are 13 pitches per inch, the classification is Unified National coarse, general purpose moderate tolerance, external thread
E) none of the above
Correct Answer:
Verified
Q77: The material note is usually found _.
A)
Q78: _ is defined as a twisting action
Q79: _ are commonly used when rapid traversing
Q80: Bolts can be _ by torque applied
Q81: The reciprocal of the pitch in inches
Q83: The taper of a pin is 0.35:12.
Q84: Select a major function of a pipe
Q85: The _ is a thread that fits
Q86: The designation "M10X1.5-6H" means _.
A) that the
Q87: Which of the following is not a
