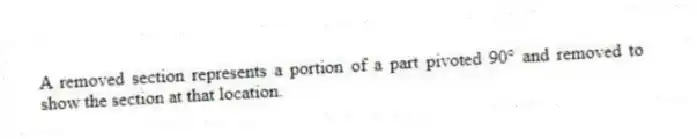

A removed section represents a portion of a part pivoted 90° and removed to show the section at that location.

Question

Quizplus · Accepted Answer

This statement is correct. A removed section is a portion of a part that has been cut and pivoted 90° to show the section at that particular location. This is a common technique used in technical drawings and engineering design to showcase the internal workings of a component.
