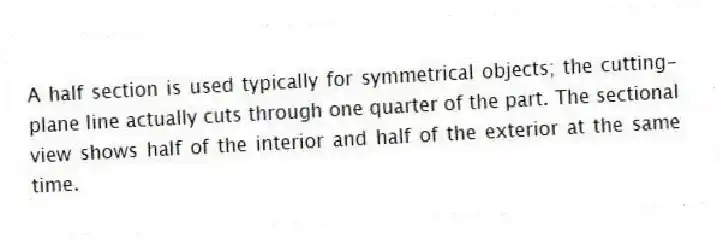

A half section is used typically for symmetrical objects; the cutting-plane line actually cuts through one quarter of the part. The sectional view shows half of the interior and half of the exterior at the same time.

Question

Quizplus · Accepted Answer

A half section is indeed used for symmetrical objects, and it involves cutting through one quarter of the object. This technique allows for the display of both the interior and exterior features on one half of the object, providing a clear view of its structure.
