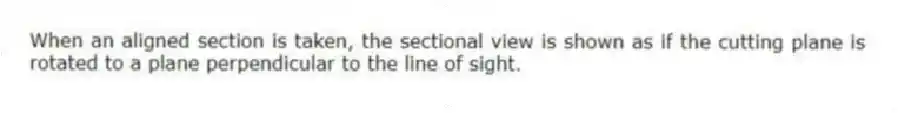

When an aligned section is taken, the sectional view is shown as if the cutting plane is rotated to a plane perpendicular to the line of sight.

Question

Quizplus · Accepted Answer

This statement is true. An aligned section is a type of sectional view in which the cutting plane is parallel to a specific feature or line in the object being viewed. When the aligned section is taken, the resultant sectional view appears as if the cutting plane has been rotated to a plane perpendicular to the line of sight. This allows for a clear and detailed visualization of the internal features of the object along the chosen alignment.
