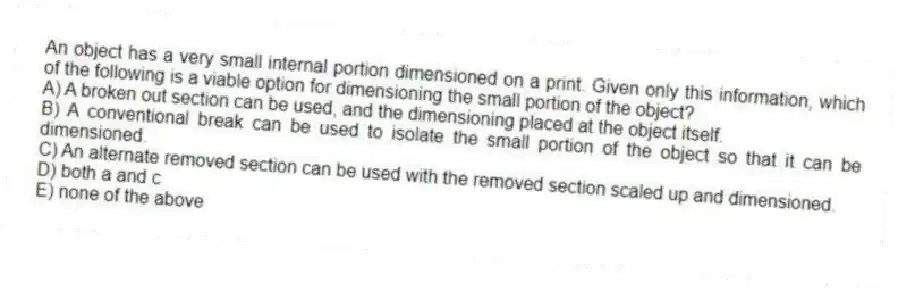

An object has a very small internal portion dimensioned on a print. Given only this information, which of the following is a viable option for dimensioning the small portion of the object?
A) A broken out section can be used, and the dimensioning placed at the object itself.
B) A conventional break can be used to isolate the small portion of the object so that it can be dimensioned.
C) An alternate removed section can be used with the removed section scaled up and dimensioned.
D) both a and c
E) none of the above
Correct Answer:
Verified
Q93: An alternate technique for placing the cutting-plane
Q94: Multiple removed sections are generally arranged on
Q95: The cutting-plane line is a thick line
Q96: A _ is drawn when the cutting
Q97: An assembly section of adjacent parts of
Q99: A _ can be shown when a
Q100: General section lines _.
A) are evenly spaced
B)
Q101: Specific features of an object are commonly
Q102: Describe an aligned section, and include information
Q103: Describe an offset section.
