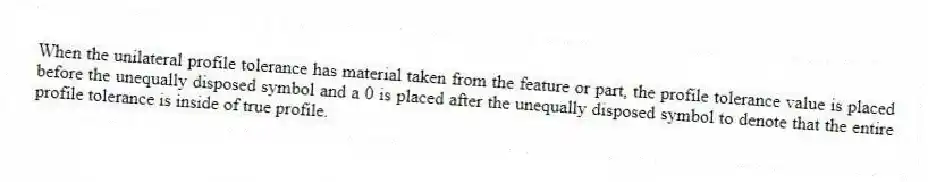

When the unilateral profile tolerance has material taken from the feature or part, the profile tolerance value is placed before the unequally disposed symbol and a 0 is placed after the unequally disposed symbol to denote that the entire profile tolerance is inside of true profile.

Question

Quizplus · Accepted Answer

This statement is true. When material is taken from a feature or part, the profile tolerance value is placed before the unequally disposed symbol and a 0 is placed after to indicate that the entire profile tolerance zone is contained within the true profile of the feature.

When the Unilateral Profile Tolerance Has Material Taken from the Feature
