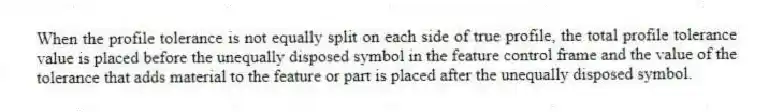

When the profile tolerance is not equally split on each side of true profile, the total profile tolerance value is placed before the unequally disposed symbol in the feature control frame and the value of the tolerance that adds material to the feature or part is placed after the unequally disposed symbol.

Question

Quizplus · Accepted Answer

This statement is true. When the profile tolerance is not equally split, the total tolerance value is placed before the unequally disposed symbol in the feature control frame, and the value of the tolerance that adds material is placed after the symbol. This can help ensure that the feature meets design requirements while still allowing for some variation in its shape or position.

When the Profile Tolerance Is Not Equally Split on Each
