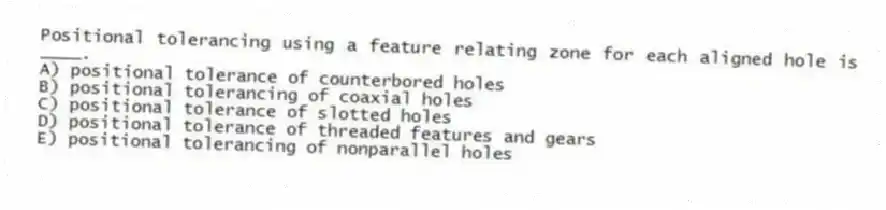

Positional tolerancing using a feature relating zone for each aligned hole is ____.
A) positional tolerance of counterbored holes
B) positional tolerancing of coaxial holes
C) positional tolerance of slotted holes
D) positional tolerance of threaded features and gears
E) positional tolerancing of nonparallel holes

Question

Quizplus · Accepted Answer

Positional tolerancing of coaxial holes is controlled using a feature relating zone for each aligned hole. This is achieved by using a composite position tolerance or a concentricity control.
