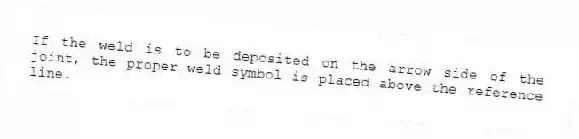

If the weld is to be deposited on the arrow side of the joint, the proper weld symbol is placed above the reference line.

Name: If the weld is to be deposited on the arrow side of the joint, the proper weld symbol is placed above the reference line.
Brand: Quizplus
Rating: 4.9 (38 reviews)

Question

Quizplus · Accepted Answer

When the weld is to be deposited on the arrow side of the joint, the proper weld symbol is placed below the reference line. Symbols placed above the reference line indicate welding on the other side of the joint.

If the Weld Is to Be Deposited on the Arrow
