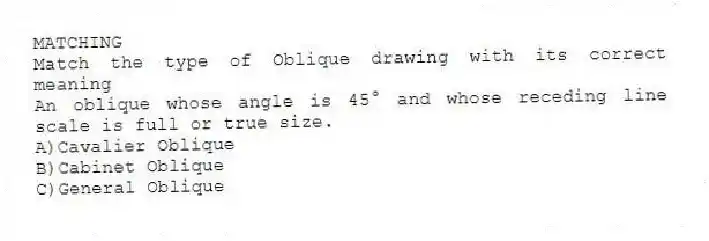

MATCHING
Match the type of Oblique drawing with its correct meaning
-An oblique whose angle is 45° and whose receding line scale is full or true size.
A)Cavalier Oblique
B)Cabinet Oblique
C)General Oblique

Question

Quizplus · Accepted Answer

A 45° angle oblique with full or true size receding lines is a Cavalier Oblique.

Answer: B
 A Cabinet Oblique has a 45° angle like a Cavalier Oblique, but the receding lines are at half scale, giving the drawing a squished look.

Answer: C
 There is no such thing as a "General Oblique" type of drawing.
