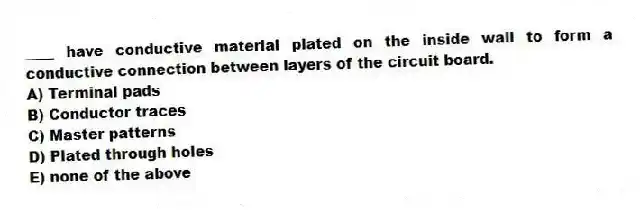

____ have conductive material plated on the inside wall to form a conductive connection between layers of the circuit board.
A) Terminal pads
B) Conductor traces
C) Master patterns
D) Plated through holes
E) none of the above
Correct Answer:
Verified
