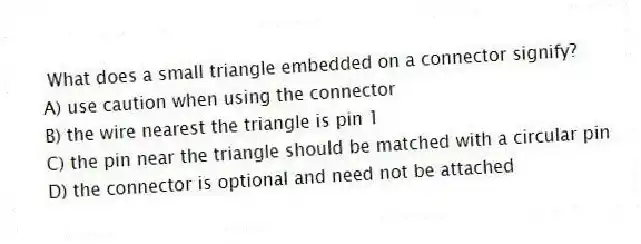

What does a small triangle embedded on a connector signify?
A) use caution when using the connector
B) the wire nearest the triangle is pin 1
C) the pin near the triangle should be matched with a circular pin
D) the connector is optional and need not be attached

Question

Quizplus · Accepted Answer

The small triangle on a connector usually indicates the location of pin 1. Pin 1 is important as it usually carries a specific signal, and it needs to be matched correctly with the corresponding pin on the other end of the connection. Knowing which pin is pin 1 can help ensure proper connection and prevent damaging the equipment. Therefore, the correct answer is B which indicates that the wire nearest the triangle is pin 1. The other options are not related to the small triangle on a connector.
