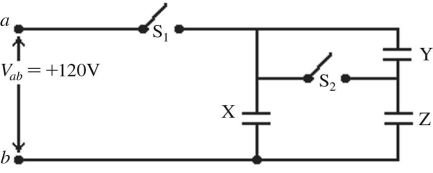

The network shown is assembled with uncharged capacitors X ,Y,and Z,with CX = 4.0 μF,CY = 6.0 μF,and CZ = 5.0 μF.The switches S1 and S2 are initially open,and a potential difference Vab = 120 V is applied between points a and b.After the network is assembled,switch S1 is then closed,but switch S2 is kept open.What is the final potential difference across capacitor X?
A) 120 V
B) 82 V
C) 75 V
D) 67 V
E) 60 V
Correct Answer:
Verified
