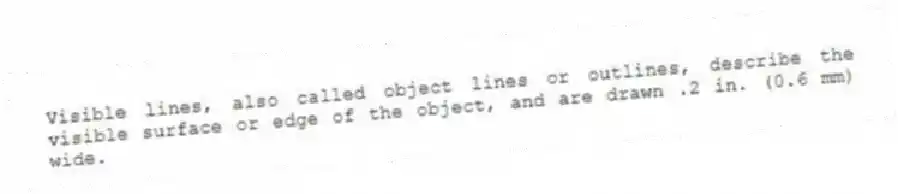

Visible lines, also called object lines or outlines, describe the visible surface or edge of the object, and are drawn .2 in. (0.6 mm) wide.

Question

Quizplus · Accepted Answer

Visible lines, also called object lines or outlines, describe the visible surface or edge of the object, but they are not drawn 0.2 in. (0.6 mm) wide; they are typically drawn much thinner, with standard thicknesses varying based on the drafting standard being followed (e.g., 0.5 mm in some standards).
