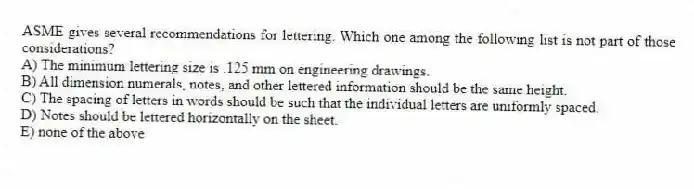

ASME gives several recommendations for lettering. Which one among the following list is not part of those considerations?
A) The minimum lettering size is .125 mm on engineering drawings.
B) All dimension numerals, notes, and other lettered information should be the same height.
C) The spacing of letters in words should be such that the individual letters are uniformly spaced.
D) Notes should be lettered horizontally on the sheet.
E) none of the above

Question

Quizplus · Accepted Answer

ASME actually recommends a minimum lettering size of 2.5 mm (0.10 in) on engineering drawings, not .125 mm. The other recommendations listed are correct.
