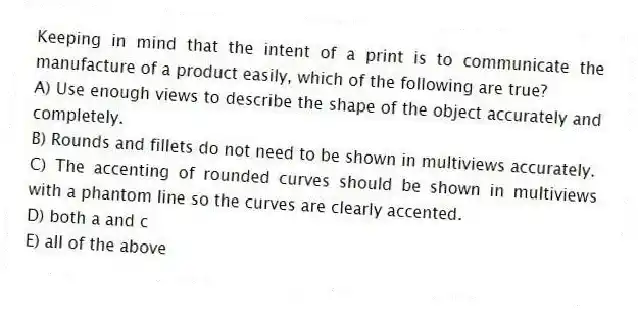

Keeping in mind that the intent of a print is to communicate the manufacture of a product easily, which of the following are true?
A) Use enough views to describe the shape of the object accurately and completely.
B) Rounds and fillets do not need to be shown in multiviews accurately.
C) The accenting of rounded curves should be shown in multiviews with a phantom line so the curves are clearly accented.
D) both a and c
E) all of the above

Question

Quizplus · Accepted Answer

Both A and C are true statements regarding creating a print that effectively communicates the manufacture of a product. Using enough views to accurately describe the shape of an object is important, as is accenting rounded curves with a phantom line in multiviews to ensure clarity. However, B is false as rounds and fillets should be shown accurately in multiviews to provide a complete understanding of the object's construction.
