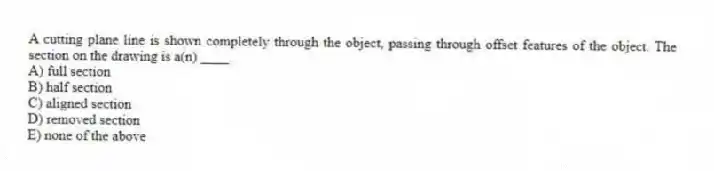

A cutting plane line is shown completely through the object, passing through offset features of the object. The section on the drawing is a(n) ____.
A) full section
B) half section
C) aligned section
D) removed section
E) none of the above

Question

Quizplus · Accepted Answer

An aligned section is used when the cutting plane line passes through offset features of the object, aligning these features in the sectional view for clarity.
