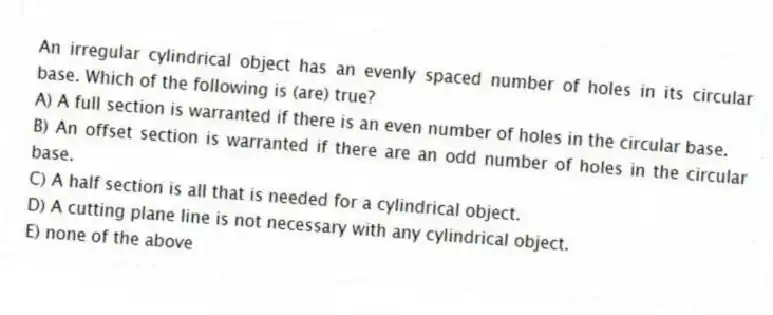

An irregular cylindrical object has an evenly spaced number of holes in its circular base. Which of the following is (are) true?
A) A full section is warranted if there is an even number of holes in the circular base.
B) An offset section is warranted if there are an odd number of holes in the circular base.
C) A half section is all that is needed for a cylindrical object.
D) A cutting plane line is not necessary with any cylindrical object.
E) none of the above
Correct Answer:
Verified
