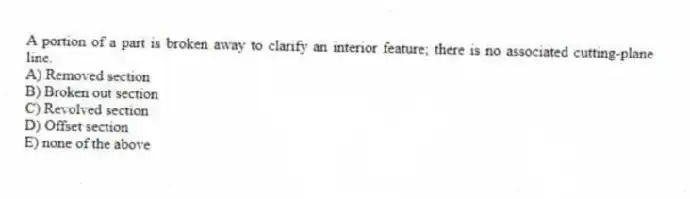

A portion of a part is broken away to clarify an interior feature; there is no associated cutting-plane line.
A) Removed section
B) Broken out section
C) Revolved section
D) Offset section
E) none of the above

Question

Quizplus · Accepted Answer

A broken out section is a type of section view where a portion of the part is broken away to show an internal feature. It differs from a removed section in that there is no cutting-plane line indicating where the section was taken. Instead, the broken line is used to indicate the portion of the part that has been removed.
