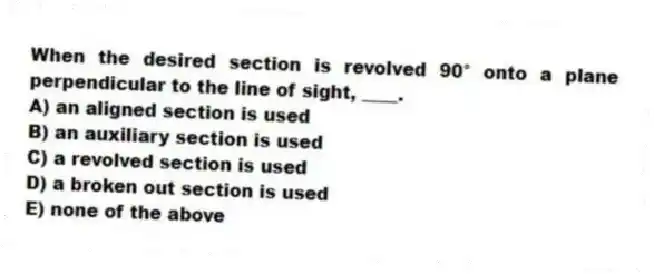

When the desired section is revolved 90° onto a plane perpendicular to the line of sight, ____.
A) an aligned section is used
B) an auxiliary section is used
C) a revolved section is used
D) a broken out section is used
E) none of the above

Question

Quizplus · Accepted Answer

The question mentions that the desired section is revolved 90° onto a plane perpendicular to the line of sight. This is known as a revolved section, where the section plane is rotated around an axis to create a 3D representation of the section. Therefore, the correct answer is C - a revolved section is used.
