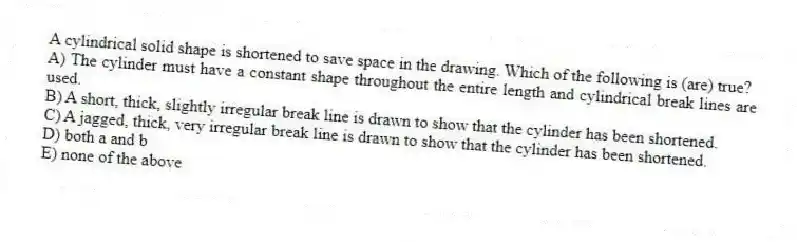

A cylindrical solid shape is shortened to save space in the drawing. Which of the following is (are) true?
A) The cylinder must have a constant shape throughout the entire length and cylindrical break lines are used.
B) A short, thick, slightly irregular break line is drawn to show that the cylinder has been shortened.
C) A jagged, thick, very irregular break line is drawn to show that the cylinder has been shortened.
D) both a and b
E) none of the above

Question

Quizplus · Accepted Answer

In order to indicate that a cylindrical solid shape has been shortened, cylindrical break lines are used. These break lines indicate that the shape remains constant throughout the entire length, but a portion has been removed for clarity in the drawing. A short, thick, slightly irregular break line (as described in choice B) or a jagged, thick, very irregular break line (as described in choice C) would not accurately represent the shape of the cylinder. Therefore, only choice A is true.
