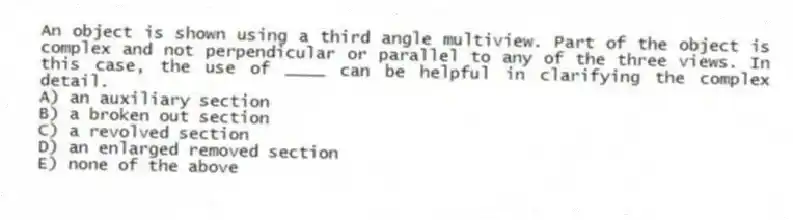

An object is shown using a third angle multiview. Part of the object is complex and not perpendicular or parallel to any of the three views. In this case, the use of ____ can be helpful in clarifying the complex detail.
A) an auxiliary section
B) a broken out section
C) a revolved section
D) an enlarged removed section
E) none of the above

Question

Quizplus · Accepted Answer

An auxiliary section can be used to show a cross-sectional view of the complex area that is not visible in the three views. This can help to clarify the detail and show the internal structure of the object. A broken out section, revolved section, or an enlarged removed section may also be helpful in some cases, but without further information, it is difficult to determine which one would be the best choice. Therefore, option A is the most appropriate choice for now.
