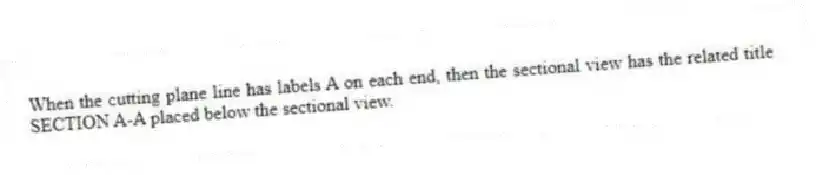

When the cutting plane line has labels A on each end, then the sectional view has the related title SECTION A-A placed below the sectional view.

Question

Quizplus · Accepted Answer

This is a correct statement. When the cutting plane line has labels A on each end, it denotes a section A-A. The sectional view of this will have the corresponding title SECTION A-A placed below it. This helps in identifying the location and orientation of the sectional view.
