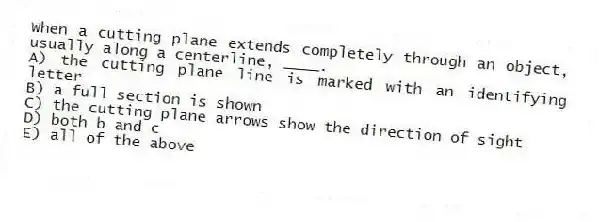

When a cutting plane extends completely through an object, usually along a centerline, ____.
A) the cutting plane line is marked with an identifying letter
B) a full section is shown
C) the cutting plane arrows show the direction of sight
D) both b and c
E) all of the above

Question

Quizplus · Accepted Answer

When a cutting plane extends completely through an object, a full section is shown and the cutting plane arrows show the direction of sight. Additionally, the cutting plane line may be marked with an identifying letter. Therefore, both options B and C are correct.
