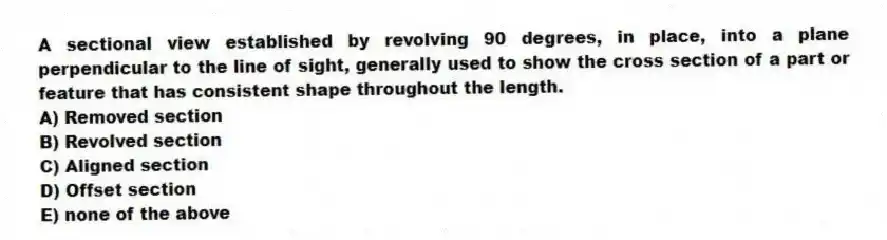

A sectional view established by revolving 90 degrees, in place, into a plane perpendicular to the line of sight, generally used to show the cross section of a part or feature that has consistent shape throughout the length.
A) Removed section
B) Revolved section
C) Aligned section
D) Offset section
E) none of the above

Question

Quizplus · Accepted Answer

A revolved section is established by revolving 90 degrees into a plane perpendicular to the line of sight. This type of section is used to show the cross-section of a part or feature that has a consistent shape throughout its length. The other options (removed section, aligned section, and offset section) do not accurately describe this type of sectional view.
