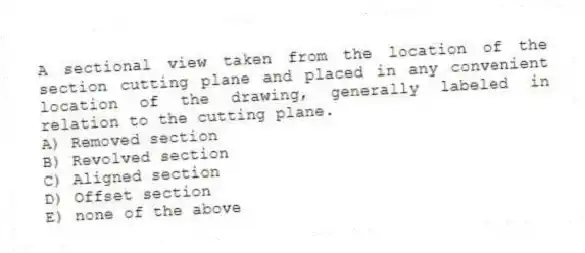

A sectional view taken from the location of the section cutting plane and placed in any convenient location of the drawing, generally labeled in relation to the cutting plane.
A) Removed section
B) Revolved section
C) Aligned section
D) Offset section
E) none of the above

Question

Quizplus · Accepted Answer

A removed section is a sectional view that is cut away from the object and placed in a different location on the same or another drawing sheet. This type of section is commonly used when the removed portion of the object blocks the view of other details or when the removed section would be too small to show in true scale.

A Sectional View Taken from the Location of the Section
